Natural Refrigerant R290
Eco-friendly propane-based refrigerant with near-zero GWP. Offers excellent thermodynamic efficiency, reducing carbon footprint while maintaining powerful heating and cooling. A sustainable choice for the future.
Intelligent Control
Take command via smart app or remote interface. Set schedules, monitor energy usage, and adjust temperatures from anywhere. Adaptive algorithms optimize efficiency and comfort, delivering a truly hassle-free user experience.
High-Temperature Hot Water
Delivers elevated water temperatures for demanding applications. Ideal for spa, pool heating, and sanitization needs. Reliable performance ensures consistent hot water supply even in cold ambient conditions, expanding your usage scenarios.
ARTIFICIAL INTELLIGENCE FUNCTION
Voice Recognition Function
Equipped with voice recognition function, it is very convenient for users to control the heat pump with only their voice including temp. setting, mode adjustment and timer setting etc.
Two-in-one Display & Room Thermostat
Normally traditional heat pumps have one individual display and one room thermostat and users have to control them one by one while SUPER HEAT heat pump allows display and room thermostat communicate with each other to achieve easier operation. At the same time, there will be more in-time & accurate room temp. since SUPER HEAT heat pumps can be controlled directly by the room thermostat.
Wireless Connection Between PCB and Display & Room Thermostat
The unit uses the wirelress connection between PCB and display & room thermostat, so that it is much more convenient to do the installation without thinking about the length and layout of the connecting wires.
70% Cost Saving on Equipement Investment
BLUETHERM heat pump is available to connect swimming pool, spa tub, house heating/cooling terminal device and hot water tank at the same time, so that users just need to buy one heat pump to meet all the heating or cooling requirements instead of buying one space heating heat pump, one pool heat pump, and one spa heat pump, saving around 70% cost on equipment investment.

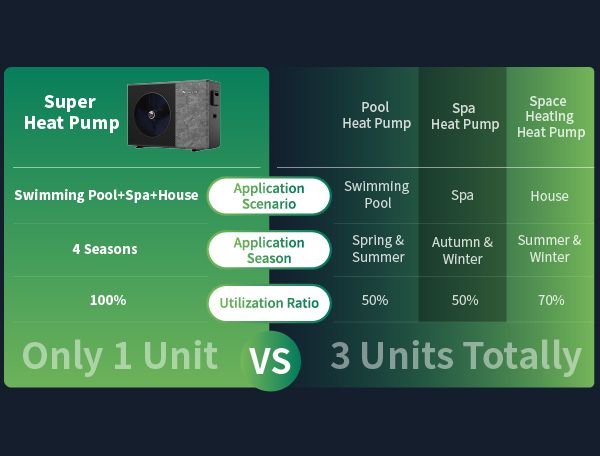

Much Higher on Equipment Utilization Ratio
Tradtional heat pump can only be used for either house heating/cooing+ sanitary hot water, pool heating/cooling or spa heating/cooling while BLUETHERM heat pump can be used for house cooling+pool heating in spring & summer + house & spa heating in autumn & winter + all year sanitary hot water without changing the installation, so that it's quite convenient for users and the equipment utilization ratio is much higher.
50% Cost Saving and 3 Times Faster on Spa Heating
Compared to the built-in electric heater 3kW of spa, the power input of BLUETHERM heat pump NF-90-ID is only around 50%, while the heating capacity is around 3 times to achieve quintuple faster heating with only half of the electricity cost.
SCOP up to 9.0 (Swimming Pool Heating Condition)
According to the standard(EN 17645), BLUETHERM heat pump can reach the energy class A with the SCOP up to 9.0 which means that the unit can achieve 9 times energy saving compared with electric heater.
SCOP up to 5.0 (Space Heating Condition)
According to the standard(EN 14825), BLUETHERM heat pump can reach the energy class A+++ with the SCOP up to 5.0 which means that the unit can achieve 5 times energy saving compared with electric heater.
Parameters
| Mode:NF- | NF-90HR3-ID | NF-160HR3-ID |
| Prated Capacity (kW) For SCOP Average Climate | 6.8 | 10.3 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||
| Power lnput (kW) | 0.48~1.88 | 0.84~3.78 |
| COP | 6.22~4.81 | 5.78~4.21 |
| Heating Capacity (kW) | 2.67~7.65 | 4.01~15.04 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / 24, Water Temp. (Inlet/Outlet): 12°C/7°C. | ||
| Power lnput (kW) | 0.62~2.28 | 1.11~4.51 |
| EER | 3.97~2.97 | 3.77~2.53 |
| Heating Capacity (kW) | 9.95 | 16.80 |
| [Swimming Pool Heating] Ambient Temp.：27℃, Inlet/Outlet: 26/28℃, Humidity 80% | ||
| Power lnput (kW) | 1.37 | 2.35 |
| COP | 8.96 | 8.25 |
| Heating Capacity (kW) | 10.11 | 18.96 |
| [SPA Heating] Ambient:15℃,Humidity:70%,Water Outlet:38℃ | ||
| Power lnput (kW) | 1.93 | 3.61 |
| COP | 4.98 | 4.23 |
| Heating Capacity | 6.47 | 10.26 |
| Rated Power lnput (kW) | 1.6 | 2.8 |
| Heating Water Temp. Range(℃) | 30~60 | |
| Operation Ambient Temp. Range for Heating (oC) | -20~43 | |
| Advised Buffer Tank Volume (L) | 60 | |
| Advised SPA Pool Volume (L) | 7 | 12 |
| Rated Water Flow (m3/h) | 1.6 | 2.8 |
| Expansion Tank (L) | 2 | 2 |
| Compressor Brand | Mitsubishi | |
| Fan Quantity | 1 | |
| Display | 4-inch Colored Touch Screen | |
| ErP Level (35oC) | A+++ | |
| Refrigerant Type | R32 | |
| Sound Pressure Level dB(A) at 10m | 19~27 | 20~29 |
| Water Pipe Connection (inch) | G1 1/4" | |
| Electricity Shock Proof | | | |
| Carton Packing Gross Weight（kg） | 119 | 136 |
| Net Dimensions[L×W×H (mm)] | 1255×440×870 | |
 Carton Packing Dimensions[L×W×H (mm)] | 1325×470×989 | |
