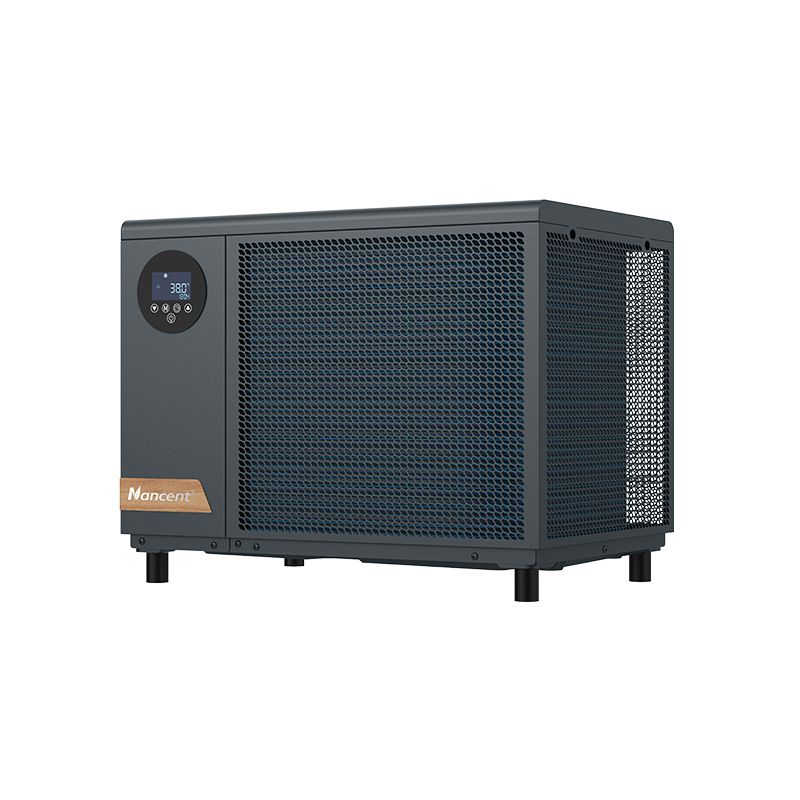

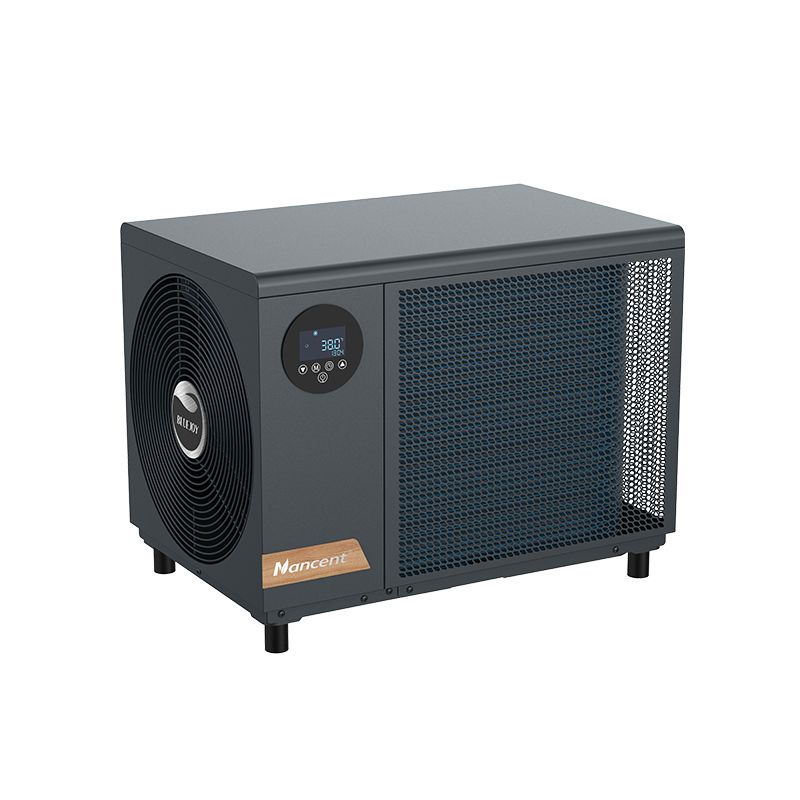

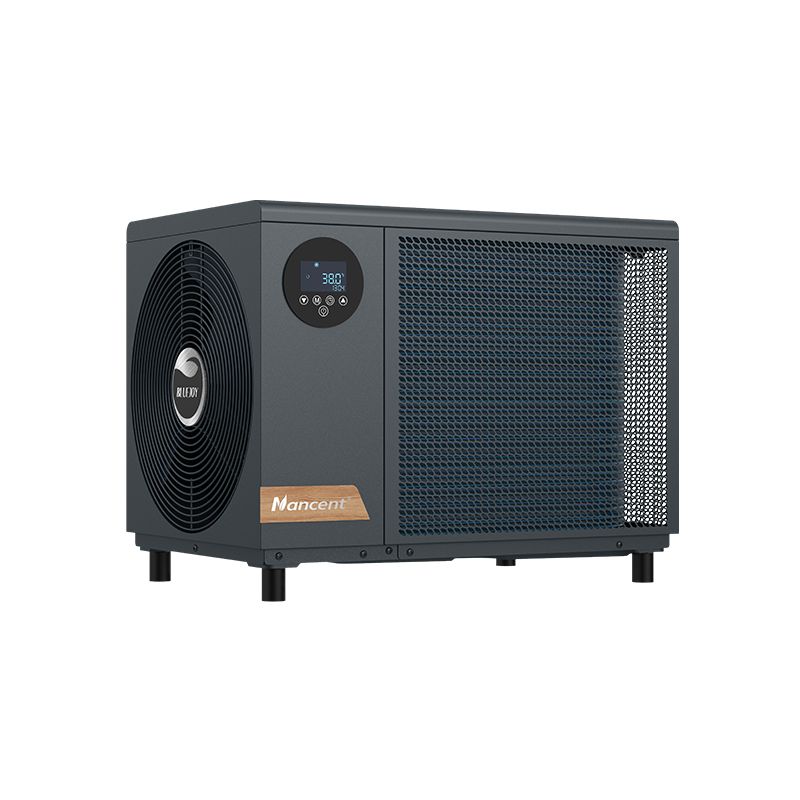

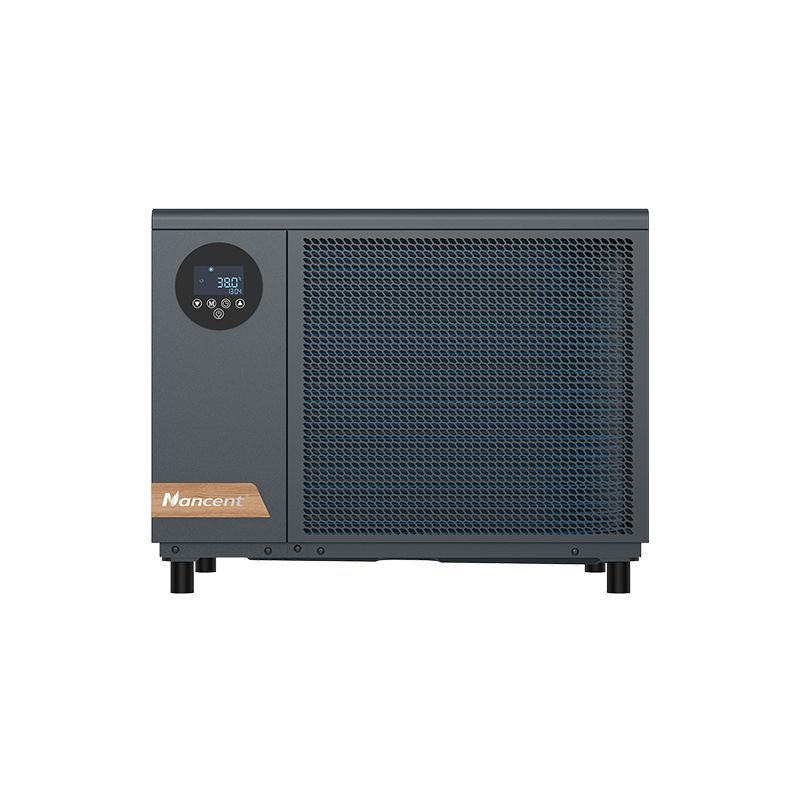

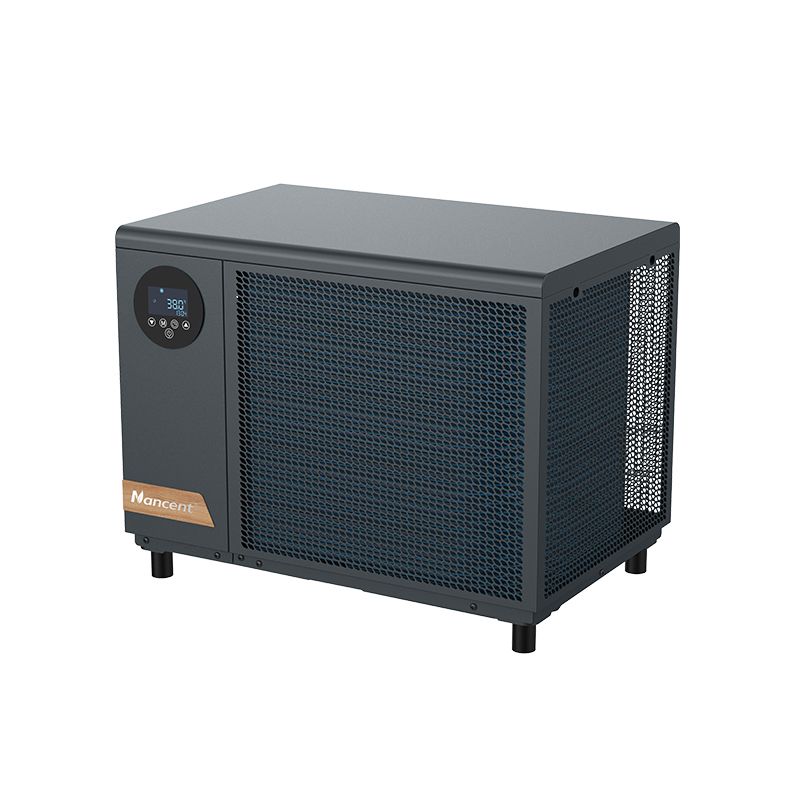

Nancent Hybrid Spa Heat Pump

EVI

PV-DD

HEMS

Inquire Now

Next Product

Details Parameters

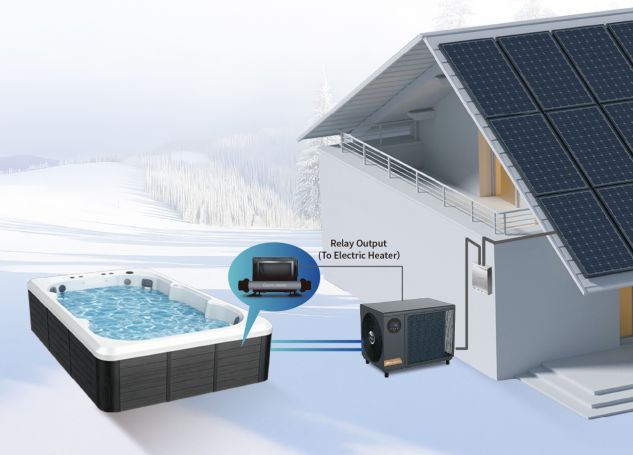

HYBRID ENERGY SOLUTION

The BLUEJOY Hybrid SPA Heat Pump incorporates a sophisticated electric heating control program, engineered specifically for spa heating systems. By seamlessly connecting to your spa's electric heater via integrated relay, it delivers a true hybrid heating solution and elevates the user experience through consistent, reliable performance. Besides, optional PV direct-drive module increases energy saving from 80% up to 98%, delivering maximum efficiency with minimal cost.

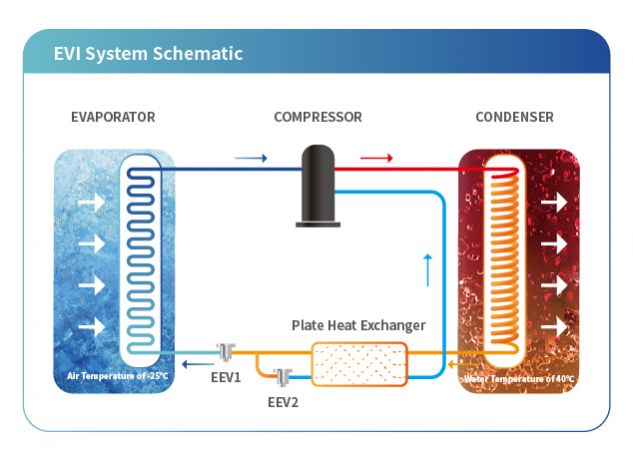

40℃ HOT WATER AT -25℃ AIR TEMPERATURE

Versus traditional heat pumps, BLUEJOY Hybrid SPA Heat Pump (UItra-low Ambient Temp.) integrate Enhanced Vapor Injection (EVI) technology, enabling stable 40℃ hot water output at -25℃ ambient without auxiliary heaters. Meanwhile, comprehensive anti-freeze systems and full thermal insulation ensure reliable cold-climate operation.

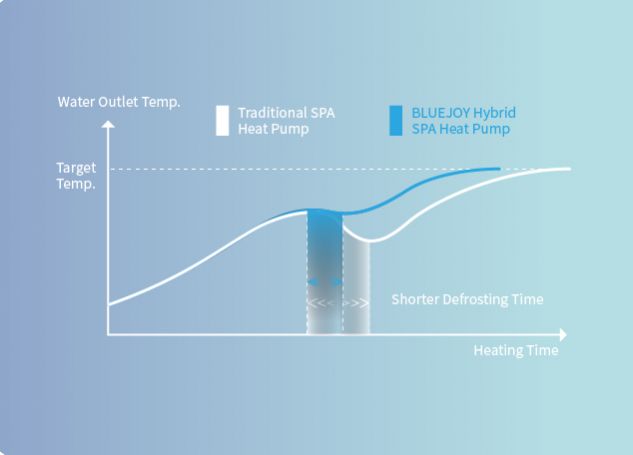

INSENSIBLE DEFROSTING

Compared to traditional SPA heat pumps, BLUEJOY Hybrid models integrate dedicated control terminals for electric heaters. During defrost cycles:

▶Instant heat compensation activates to maintain water temperature.

▶Defrost time gets reduced.

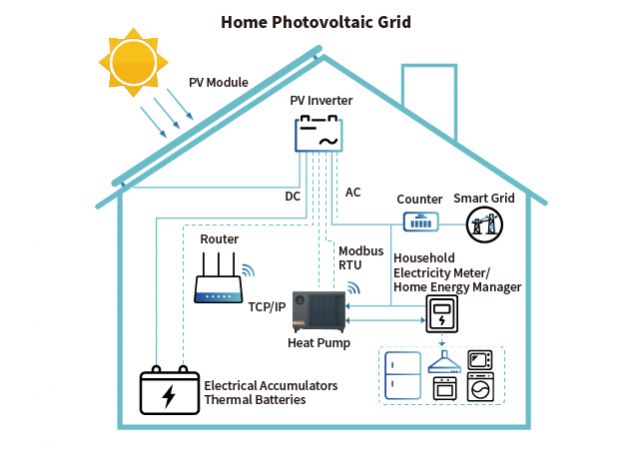

SG & HEMS CONNECTIVITY

Enables unit connectivity with national smart grids and PV system to support energy conservation under expanding energy-saving policies.

Heat pumps are controlled by smart meter or home energy manager signals to maximize household photovoltaic energy utilization.

Operational Intelligence:

Heat pumps are controlled by smart meter signals to maximize household photovoltaic energy utilization.

Reduces energy expenses through dynamic load optimization.

Compatible with energy storage expansions:

▶Electrical Accumulators

▶Thermal Batteries

Parameters

Model: NF-	50SR3-ID-M	50SR3-ID	70SR3-ID	70SR3-IED	70SR3-IED
Type	Non-EVI Inverter (Common Ambient)	Non-EVI Inverter (Common Ambient)	Non-EVI Inverter (Common Ambient)	Non-EVI Inverter (Common Ambient)	Non-EVI Inverter (Common Ambient)
Heating Water Temperature Range (℃)	9~40	9~40	9~40	9~40	9~40
Cooling Water Temperature Range (℃)	8~40	8~40	8~40	8~40	8~40
Heating Operating Ambient Temperature Range (℃)	-15~43	-15~43	-20~43	-25~43	-25~43
Cooling Operating Ambient Temperature Range (℃)	10~43	10~43	10~43	10~43	10~43
[Swimming Pool Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet Temperature: 26°C
Heating Capacity (kW)	1.90~5.16	2.00~5.20	2.75~7.25	2.70~7.12	2.55~7.01
Power Input (kW)	0.17~0.95	0.16~0.93	0.22~1.22	0.19~1.15	0.20~1.19
COP	11.18~5.43	12.50~5.59	12.50~5.94	14.21~6.19	13.25~5.89
[Swimming Pool Cooling] Ambient Temperature (DB/WB): 35°C/-; Water Inlet Temperature: 30°C
Cooling Capacity (kW)	0.89~1.51	1.05~1.85	1.50~3.14	1.47~2.11	1.44~2.05
Power Input (kW)	0.20~0.64	0.22~0.63	0.30~1.08	0.31~0.70	0.32~0.72
EER	4.45~2.36	4.77~2.94	5.00~2.91	4.74~3.01	4.50~2.85
[SPA Heating] Ambient Temperature (DB/WB): 15°C/12°C; Water Outlet: 38°C
Heating Capacity (kW)	1.31~3.62	1.38~3.70	1.75~4.66	1.85~5.67	1.81~5.54
Power Input (kW)	0.20~1.15	0.20~1.10	0.26~1.48	0.31~1.64	0.32~1.68
COP	6.55~3.15	6.90~3.36	6.73~3.15	5.97~3.46	5.66~3.30
[SPA Heating] Ambient Temperature (DB/WB): 0℃/-1.5℃; Water Outlet: 38℃
Heating Capacity (kW)	1.01~2.02	1.03~2.05	1.36~3.02	1.54~3.91	1.51~3.82
Power Input (kW)	0.27~0.91	0.26~0.85	0.34~1.24	0.38~1.64	0.39~1.81
COP	3.74~2.22	3.96~2.41	4.00~2.43	4.05~2.38	3.87~2.11
[SPA Heating] Ambient Temperature (DB/WB): -10℃/-11℃; Water Outlet: 38℃
Heating Capacity (kW)	0.71~1.72	0.74~1.78	0.95~2.51	1.26~3.02	1.22~2.93
Power Input (kW)	0.26~0.99	0.25~0.96	0.31~1.28	0.39~1.45	0.40~1.51
COP	2.73~1.74	2.96~1.85	3.10~1.96	3.23~2.08	3.05~1.94
[SPA Heating] Ambient Temperature (DB/WB): -20℃/-20.4℃; Water Outlet: 38℃
Heating Capacity (kW)	/	/	0.76~2.08	0.92~2.31	0.89~2.24
Power Input (kW)	/	/	0.30~1.16	0.34~1.40	0.35~1.43
COP	/	/	2.53~1.79	2.71~1.65	2.54~1.57
[SPA Heating] Ambient Temperature (DB/WB): -25℃/-25.3; Water Outlet: 38℃
Heating Capacity (kW)	/	/	/	0.75~1.92	0.73~1.86
Power Input (kW)	/	/	/	0.31~1.35	0.33~1.38
COP	/	/	/	2.42~1.42	2.21~1.35
General Information
Power Supply	220-240V~/50Hz
Rated Power Input (kW)	1.5	1.2	2	2.2	2.4
Rated Current (A)	6.52	5.4	8.7	9.57	10.43
Water Flow (m³/h)	2.2	2.2	3.1	3.1	3
Water Pressure Drop (kPa)	12	15	18	18	18
Refrigerant			R32
Compressor Brand	GMCC	GMCC	Mitsubishi	GMCC	GMCC
Throttling Device	EEV
Water Side Heat Exchanger	Titanium Heat Exchanger
Display	LED Screen
Wi-Fi Function	Yes
Water Pipe Connection (mm)	32 or 38	50
Water Proof Class	IPX4
Electricity Shock Proof	Class Ⅰ
Sound Pressure Level at 1m [dB(A)]	33~48	33~48	34~50	35~51	35~51
Sound Pressure Level at 10m [dB(A)]	<32	<28	<29	<30	<30
Net Weight (kg)	24	29.5	38.5	37	35
Net Dimensions With Rubber Feet [L×W×H (mm)]	453×399×457	494×440×457	626×442×467
