Precise Temperature Control, Safe & Efficient
• Smart adjustment between 4~20°C, avoiding excessive cold or ineffective therapy, while featuring a built-in high-efficiency disinfection system to ensure safe water quality.
Cost-Effective
• Per-session utility costs are just 1/5 of traditional ice cube usage, eliminating transportation and storage costs.
Smart Energy-Saving Features
• Precise temperature control (4~40°C ±0.1°C) • Timer function reduces idle operation by 30% • Uses about 60~70% less electricity compared to ice production.

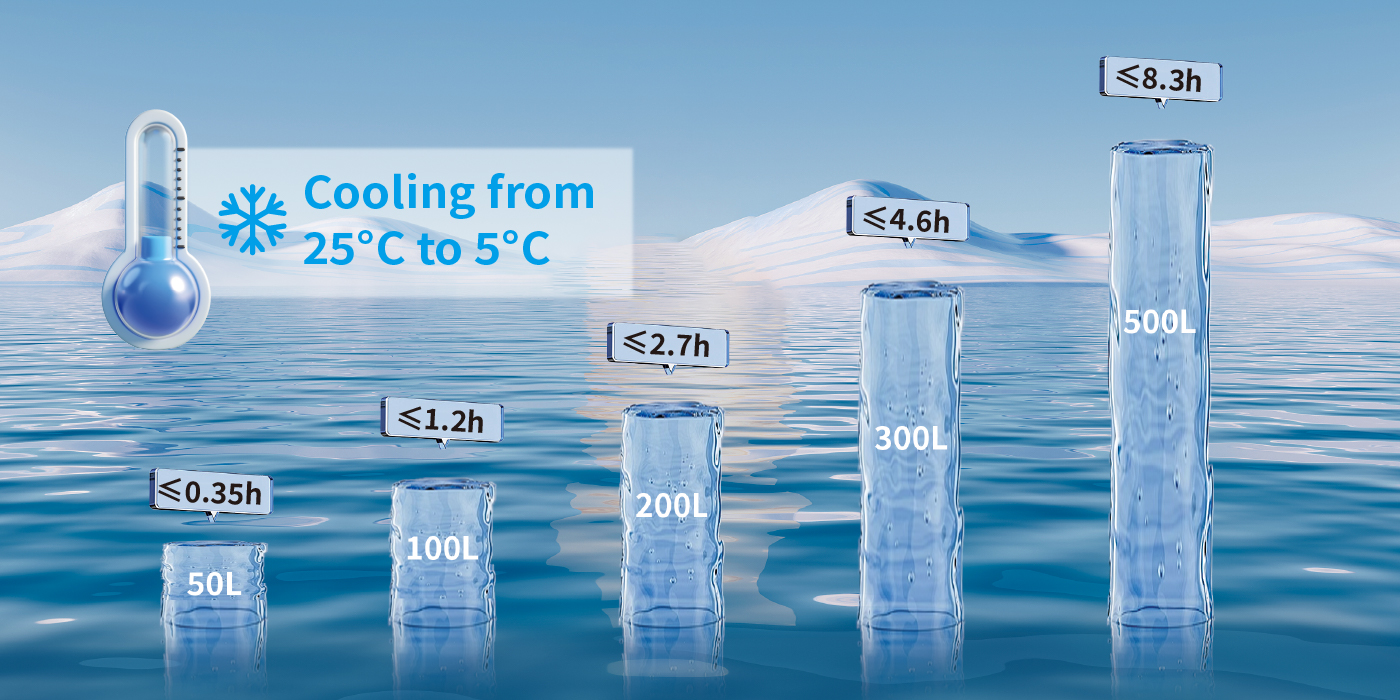

RAPID COOLING
The BLUECOLD F maintains exceptional cooling performance even at 30°C ambient temperature, efficiently chilling water from 25°C to 5°C with significantly reduced cooling time.

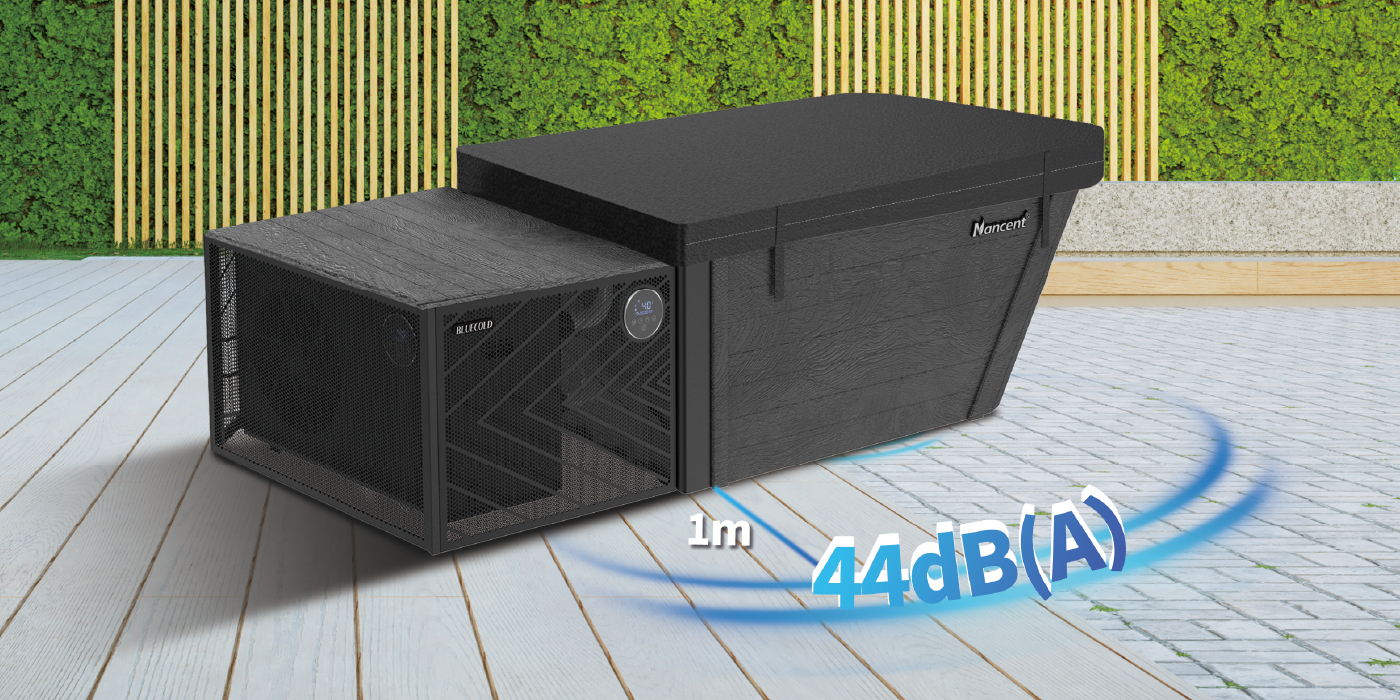

WHISPER-QUIET PERFORMANCE
Multiple noise-reducing measures ensure an ultra-quiet environment, as low as 44 dB(A) at 1 meter.
● Compressor Suspension Chassis
The suspension chassis design minimizes vibration transmission during compressor operation and achieves effective noise reduction.
● Multi-Layer Acoustic Insulation
Internal piping and structural insulation effectively reduce operational noise transmission.
● Compressor Soundproof Layers
Double-layer soundproofing material significantly reduces compressor operating noise.
● Soundproof Insulation of Compressor Chamber
The compressor chamber is lined with noise-absorbing sponge, efficiently reducing noise.
● Copper Pipe Noise Reduction
The optimized copper pipe layout minimizes vibration and pipeline noise during operation.
● Special-Shaped Fan Blades
Fan blades feature a serrated edge design, enhancing aerodynamic efficiency while reducing noise.
● Sturdy Structure
A 1.2mm-thick chassis and 1.0mm-thick motor bracket ensure robust support and quiet, stable operation.

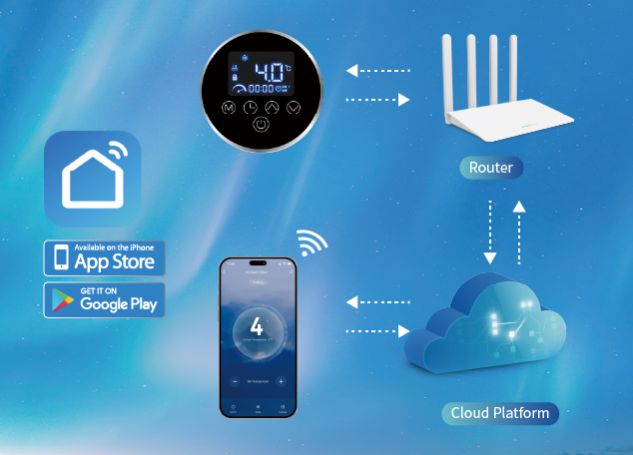

Smart WiFi Control
Control your chiller anytime, anywhere by downloading the SmartLife app on your phone, delivering effortless comfort right at your fingertips.
Comprehensive Self-Protection Functions
Water Flow Protection, High Pressure Protection, Low Pressure Protection, Anti-freezing Protection, Auto-defrosting Protection, High and Low Air Temperature Protection, Water Temperature Over Low Protection, and Exhaust Gas Temperature Over High Protection.

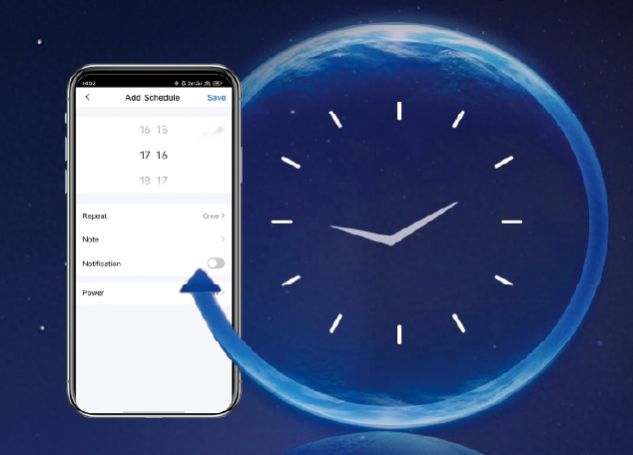

Timer Settings
Your chiller can automatically turn on and off at preset times according to your plan, maximizing energy savings and ensuring your cold/hot therapy is always ready when you need it.
Parameters
| Model：NF- | 30CR3 |
| Type | Cooling & Heating |
| Water Volume & Cooling Time From 25℃ to 5℃ (Ambient Temp.: 30℃) | 50L: ≤0.6h 100L: ≤1.3h 200L: ≤2.7h 300L: ≤4.6h 500L: ≤8.3h |
| Cooling Water Temperature Range (℃) | 4~30 |
| Heating Water Temperature Range (℃) | 9~40 |
| Cooling Operating Ambient Temperature Range (℃) | 5~43 |
| Heating Operating Ambient Temperature Range (℃) | -7~43 |
| [Cooling] Ambient Temperature (DB/WB): 35℃/-; Water Outlet: 27℃; Water Flow: 1.3m³/h | |
| Cooling Capacity (kW) | 2.84 |
| Power Input (kW) | 1.26 |
| EER | 2.25 |
| [Cooling] Ambient Temperature (DB/WB): 27℃/-; Water Outlet: 5℃; Water Flow: 1.2m³/h | |
| Cooling Capacity (kW) | 2.04 |
| Power Input (kW) | 0.94 |
| EER | 2.18 |
| [Cooling] Ambient Temperature (DB/WB): 15℃/-; Water Outlet: 5℃; Water Flow: 1.3m³/h | |
| Cooling Capacity (kW) | 2.24 |
| Power Input (kW) | 0.84 |
| EER | 2.68 |
| [Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet: 26℃; Water Flow: 1.3m³/h | |
| Heating Capacity (kW) | 5.27 |
| Power Input (kW) | 0.93 |
| COP | 5.67 |
| [Heating] Ambient Temperature (DB/WB): 15°C/12°C; Water Inlet: 26℃; Water Flow: 1.3m³/h | |
| Heating Capacity (kW) | 4.09 |
| Power Input (kW) | 0.96 |
| COP | 4.26 |
| [Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet: 38℃; Water Flow: 1.3m³/h | |
| Heating Capacity (kW) | 3.39 |
| Power Input (kW) | 1.15 |
| COP | 2.95 |
| General Information | |
| Power Supply | 220-240V~/50Hz |
| Rated Power Input (kW) | 1.40 |
| Rated Current (A) | 6.08 |
| Water Pump Input Power (W) | 130 |
| Refrigerant | R32 |
| Comppressor Brand | HIGHLY |
| Throttling Device | EEV |
| Water Side Heat Exchanger | Titanium Heat Exchanger |
| Display | LED Screen |
| Circulation Pump | Low-Voltage Centrifugal Anti-Corrosion Pump |
| Sterilization Device | UV Sterilizer (Optional) Ozone Sterilizer (Optional) |
| Water Filter | Cartridge Filter |
| Transport Wheels | Yes(Optional) |
| Carry Handles | Yes |
| Easy Maintenance Plate | Yes |
| Quick Connectors | Yes |
| Water Pipe Connection (mm) | φ25.4 |
| Water Proof Class | IPX4 |
| Electricity Shock Proof | Class Ⅰ |
| Sound Pressure Level at 1m [dB(A)] | 44 |
| Sound Pressure Level at 10m [dB(A)] | 35 |
| Net Weight (kg) | 43 |
| Net Dimensions With Wheels [L×W×H (mm)] | 720×379×495 |
| Notice: More appearances are available. Specifications are for reference only and subject to the final product. | |
