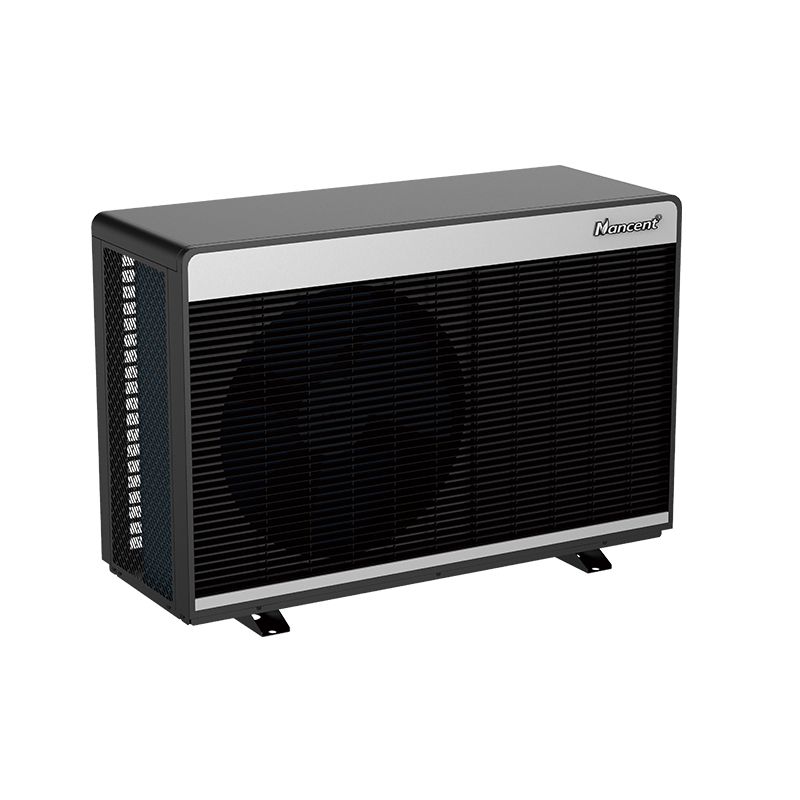

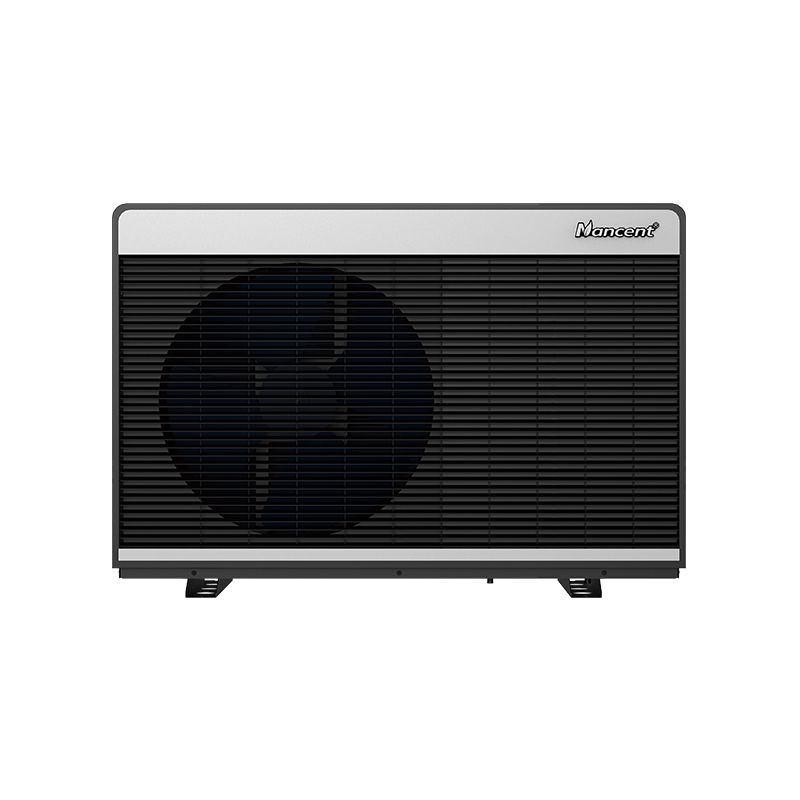

3D Full Inverter Pool Chiller

Water Temperature

Achieves a wide spectrum of water temperatures, from therapeutic ice bath cold to comfortable warmth. Precisely control the entire range to support muscle recovery, relaxation, or other daily needs. Reliable, flexible, and ready for any application with consistent performance across every degree.

Smart Control

Take full command of your heat pump via intuitive mobile app or smart home integration. Set schedules, adjust temperatures remotely, monitor energy usage, and receive maintenance alerts. Effortless comfort management puts total control at your fingertips, saving energy while maximizing convenience.

3D Inverter

Advanced variable-frequency compressor technology dynamically adjusts speed to match real-time demand. Reaches desired temperature faster, maintains precise stability with minimal fluctuations, and operates quietly while reducing energy consumption. Enhanced durability and superior efficiency for year-round comfort.

Inquire Now

Details Parameters

3 Core Commercial Differentiated Advantages

Commercial Large-Volume Pool Adaptation

• Supports stable refrigeration for up to 10m³ (10000L) commercial cooling pool.

• Maintains exceptional cooling performance under full-load large-volume operation.

• Fully meets the demands of commercial venues, professional sports centers and large-scale aquatic facilities.

3D Full Inverter Pool Chiller

Rapid Cooling Performance

• Efficiently chills water from 25℃ to 2℃ with significantly shortened cooling time.

• Improves service efficiency and customer turnover rate for commercial venues.

3D Full Inverter Pool Chiller

Ultra-Low Temperature Stable Cooling Down to 2℃

Breaks through the 8℃ minimum temperature limit of traditional pool heat pump, reaches as low as 2℃ water temperature.

Maintains stable cooling performance range at 0℃-43℃ ambient temperature.

Fully satisfies professional demands of ultra-low temperature cold therapy, sports recovery and special aquatic therapy scenarios.

Parameters

Model: NF-	60CR3-lD	80CR3-lD	120CR3-lD	140CR3-lD	160CR3-lD
Type	Cooling & Heating	Cooling & Heating	Cooling & Heating	Cooling & Heating	Cooling & Heating
Cooling Water Temp. Range (℃)	2~40	2~40	2~40	2~40	2~40
Heating Water Temp. Range (℃)	9~40	9~40	9~40	9~40	9~40
Heating Operating Ambient Temp. Range (℃)	-7~43	-7~43	-7~43	-7~43	-7~43
Cooling Operating Ambient Temp. Range (℃)	0~43	0~43	0~43	0~43	0~43
[Cooling] Ambient Temperature (DB/WB): 35℃/-; Water Outlet Temperature: 27℃
Cooling Capacity (kW)	3.52~6.03	4.85~8.06	5.40~12.80	6.45~14.37	7.35~16.05
Power lnput (kW)	0.64~1.77	1.19~2.92	0.70~2.45	1.15~4.14	1.34~4.73
EER	5.50~3.41	4.08~2.76	7.71~5.22	5.61~3.47	5.49~3.39
[Cooling] Ambient Temperature (DB/WB): 27℃, Water Outlet Temperature: 5℃
Cooling Capacity (kW)	2.28~4.62	3.05~6.18	3.62~7.30	4.30~9.54	4.92~10.83
Power lnput (kW)	0.51~1.56	0.93~2.71	0.63~1.82	0.93~3.10	1.09~3.67
EER	4.47~2.96	3.28~2.28	5.75~4.01	4.62~3.08	4.51~2.95
[Cooling] Ambient Temperature (DB/WB): 15℃/-; Water Outlet Temperature: 5℃
Cooling Capacity (kW)	3.78~6.25	5.07~8.38	5.33~9.89	5.50~12.25	6.21~13.94
Power lnput (kW)	0.61~1.61	1.04~2.95	0.88~1.94	0.89~3.16	1.03~3.75
EER	6.20~3.88	4.88~2.84	6.06~5.10	6.18~3.88	6.03~3.72
[Cooling] Ambient Temperature (DB/WB): 10℃/-, Water lnlet: 5℃
Cooling Capacity (kW)	3.54~5.89	4.73~7.88	4.97~9.23	4.35~9.75	4.96~11.12
Power lnput (kW)	0.59~1.57	0.73~2.33	0.60~2.04	0.71~2.56	0.85~2.98
EER	6.00~3.75	6.48~3.38	8.28~4.52	6.13~3.81	5.84~3.73
[Heating] Ambient Temperature (DB/WB): 27oC/24.3oC; Water lnlet Temperature: 26℃
Heating Capacity (kW)	2.28~11.12	3.73~18.09	4.34~21.08	4.87~25.37	5.55~28.14
Power lnput (kW)	0.18~1.71	0.31~3.17	0.27~2.94	0.37~3.87	0.45~4.94
COP	12.67~6.50	12.03~5.71	16.34~7.18	13.16~6.56	12.33~5.70
[Heating] Ambient Temperature (DB/WB): 15oC/12oC; Water lnlet Temperature: 26℃
Heating Capacity (kW)	1.61~7.85	5.51~12.85	3.04~14.95	3.41~17.88	3.85~20.30
Power Input (kW)	0.21~1.82	0.81~3.24	0.35~2.97	0.40~3.93	0.46~4.65
COP	7.67~4.31	6.80~3.97	8.66~5.04	8.54~4.55	8.37~4.37
General lnformation
Power Supply	220-240V~/50Hz
Rated Power lnput (kW)	2.6	4.25	5.05	5.62	6.3
Rated Current (A)	11.3	18.48	21.94	24.43	27.39
Water Flow Volume (m3/h)	4.8	7.7	9.1	10.9	12.1
Water Pressure Drop (kPa)	17	29	30	33	36
Refrigerant	R32
Compressor Brand	Mitsubishi
Throttling Device	EEV
Wate Side Heat Exchanger	Titanium
Display	LCD Screen
Wi-Fi Function	Yes
Water Pipe Connection (mm)	50/48.3
Water Proof Level	lPX4
Electricity Shock Proof	Class I
Sound Pressure Level [dB(A)]	43~52	46~56	47~57	47~58	48~59
Net Weight (kg)	42	75	82	87	89
Net Dimensions [L×W×H (mm)]	910×360×618	1002×391×654	1192×447×775
Notice: More appearances are available. Specifications are for reference only and subject to the final product.
