R32 Refrigerant
High-performance refrigerant that balances efficiency with environmental responsibility. Offers superior heat transfer capabilities while using less energy, helping to reduce operational costs and carbon emissions simultaneously.
Wi-Fi Connectivity
Smart home integration made simple. Connect wirelessly to control your system remotely, monitor energy usage in real-time, and receive maintenance alerts directly on your smartphone for total peace of mind.
Water Temperature 8-40°C
Flexible temperature control for personalized comfort. The wide adjustment range allows you to fine-tune water temperature precisely, delivering refreshing cool water in summer and soothing warmth during colder months.
6 TIMES ENERGY-SAVING

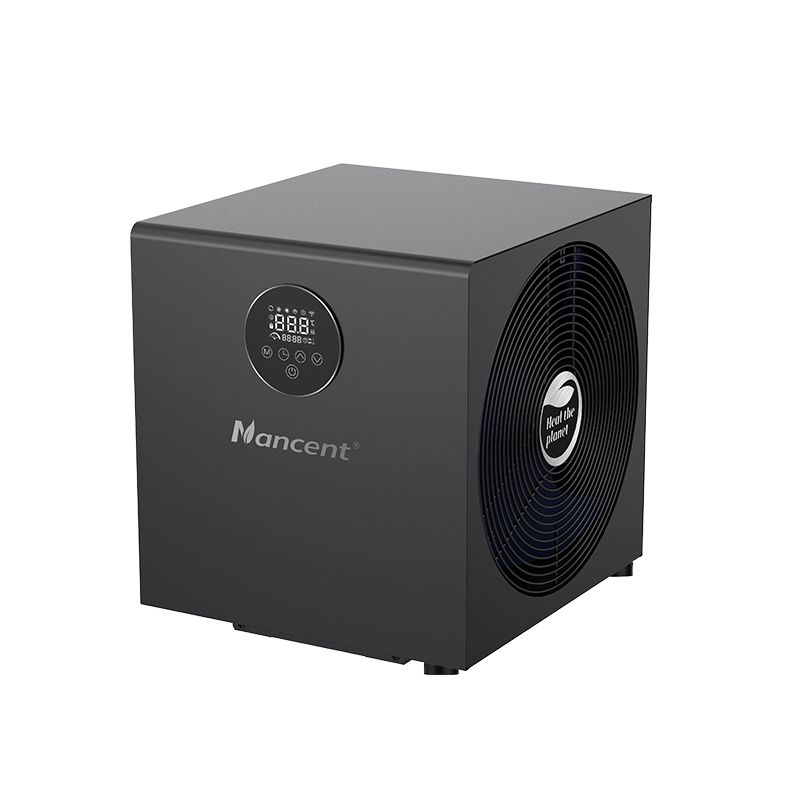

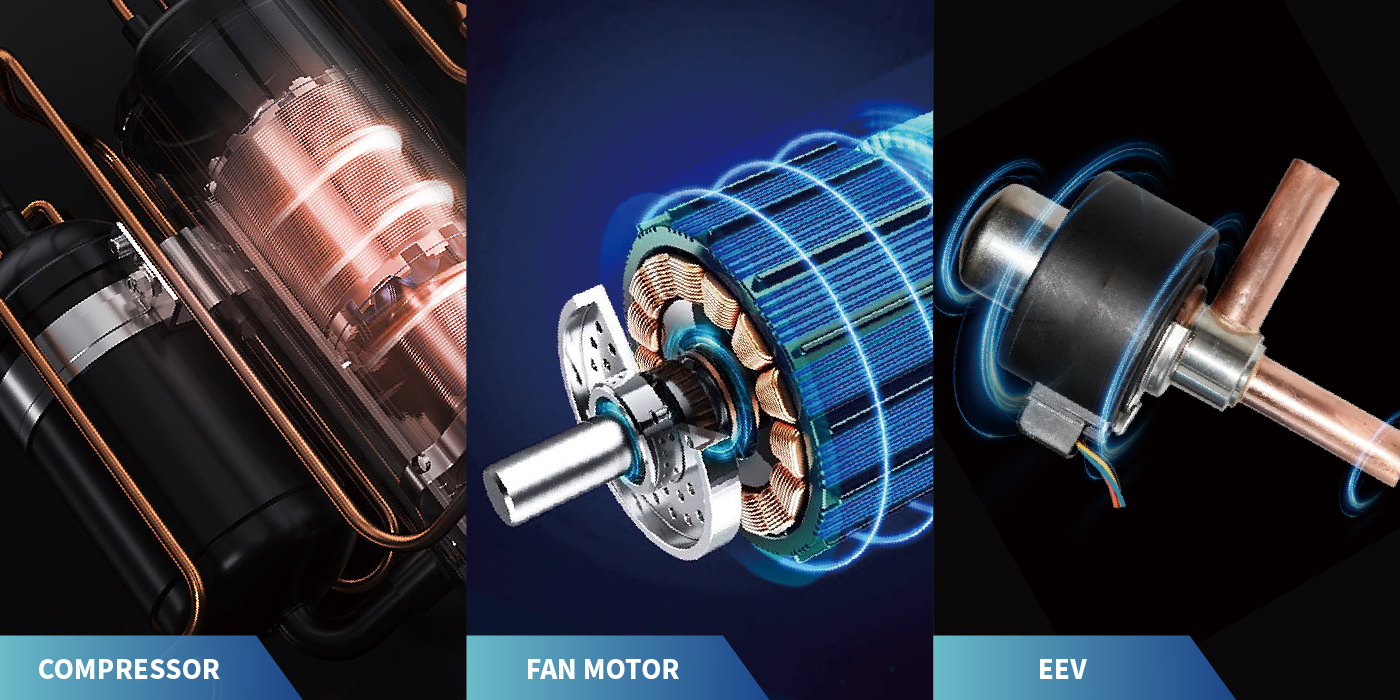

With Nancent's exclusive 3D Full Inverter Technology, the status of compressor, fan motor, and electronic expansion valve are always optimized. This enables the OCEAN SEAGRASS SERIES to reach a maximum COP of 13.0 and a SCOP of 6.0, achieving over six times the energy efficiency of standard electric heaters.
4-SEASON RUNNING
Compared to conventional ON/OFF mini pool heat pumps, the OCEAN SEAGRASS SERIES operates effectively across a much wider ambient temperature range (-15℃ to 43℃). This ensures a refreshing swim in the summer and a hot, relaxing spa experience even during the cold winters.
MULTIPLE APPLICATION SCENARIOS
Engineered to excel across diverse environments, the OCEAN SEAGRASS SERIES provides precise temperature management for swimming pool, spa, ice bath, and aquaculture.

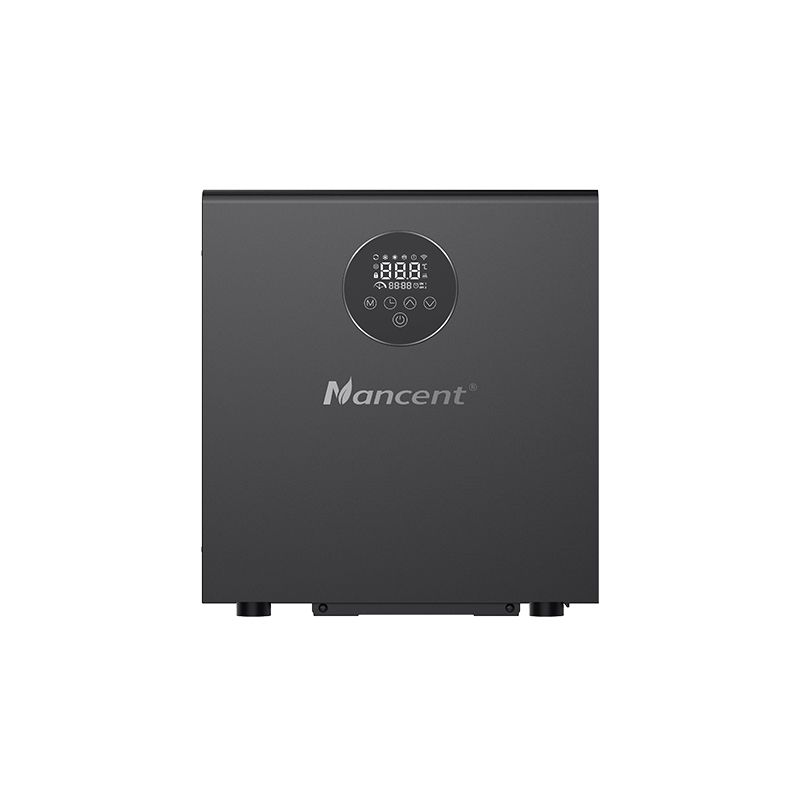

IPX6 Touch Controller
Simple, intuitive, and fully waterproof controls for effortless operation.
Comprehensive Protection System
Incorporates multiple safeguards (flow, pressure, refrigerant temperature, and water temperature) to ensure stable and secure operation.
Parameters
| Model：NF- | 40SR3-ID-M | 50PR3-ID-M |
| Advised Pool Size (m³) | 8~15 | 10~20 |
| Heating Water Temperature Range (℃) | 9~40 | 9~40 |
| Cooling Water Temperature Range (℃) | 8~40 | 8~40 |
| Heating Operating Ambient Temperature Range (℃) | -15~43 | -15~43 |
| Cooling Operating Ambient Temperature Range (℃) | 10~43 | 10~43 |
| [Swimming Pool Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet Temperature: 26°C | ||
| Heating Capacity (kW) | 1.52~4.02 | 1.90~5.16 |
| Power Input (kW) | 0.12~0.72 | 0.17~0.95 |
| COP | 12.67~5.58 | 11.18~5.43 |
| [Swimming Pool Heating] Ambient Temperature (DB/WB): 15°C/12°C; Water Inlet Temperature: 26°C | ||
| Heating Capacity (kW) | 1.10~2.73 | 1.40~3.68 |
| Power Input (kW) | 0.16~0.63 | 0.21~0.87 |
| COP | 6.88~4.33 | 6.67~4.23 |
| [Swimming Pool Heating] Ambient -15℃/-12℃, Water Inlet Temperature: 26°C | ||
| Heating Capacity (kW) | 0.35~0.96 | 0.49~1.25 |
| Power Input (kW) | 0.11~0.49 | 0.16~0.67 |
| COP | 3.18~1.96 | 3.06~1.87 |
| [Swimming Pool Cooling] Ambient Temperature (DB/WB): 35°C/-; Water Inlet Temperature: 30°C | ||
| Heating Capacity (kW) | 0.71~1.43 | 0.89~1.51 |
| Power Input (kW) | 0.17~0.68 | 0.20~0.64 |
| COP | 4.18~2.10 | 4.45~2.36 |
| General Informations | ||
| Power Supply | 220-240V~/50Hz | |
| Rated Power Input (kW) | 1.05 | 1.50 |
| Rated Current (A) | 4.57 | 6.52 |
| Water Flow (m³/h) | 1.7 | 2.2 |
| Water Pressure Drop (kPa) | 11 | 12 |
| Refrigerant | R32 | R32 |
| Compressor Brand | GMCC | GMCC |
| Throttling Device | EEV | |
| Water Side Heat Exchanger | Titanium Heat Exchanger | |
| Display | LED Screen | |
| Wi-Fi Function | Yes | |
| Water Pipe Connection (mm) | φ32 or φ38 | |
| Water Proof Class | IPX4 | |
| Electricity Shock Proof | Class Ⅰ | |
| Sound Pressure Level at 1m [dB(A)] | 32~47 | 33~48 |
| Sound Pressure Level at 10m [dB(A)] | <31 | <32 |
| Net Weight (kg) | 22 | 24 |
| Net Dimensions With Rubber Feet [L×W×H (mm)] | 453×399×457 | |
| Notice: More appearances are available. Specifications are for reference only and subject to the final product. | ||
