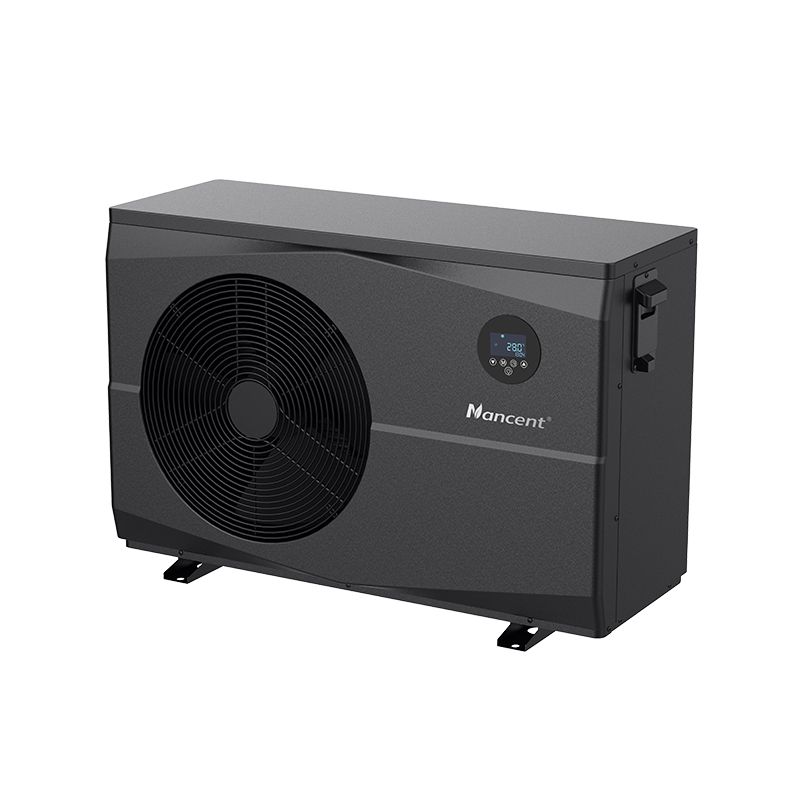

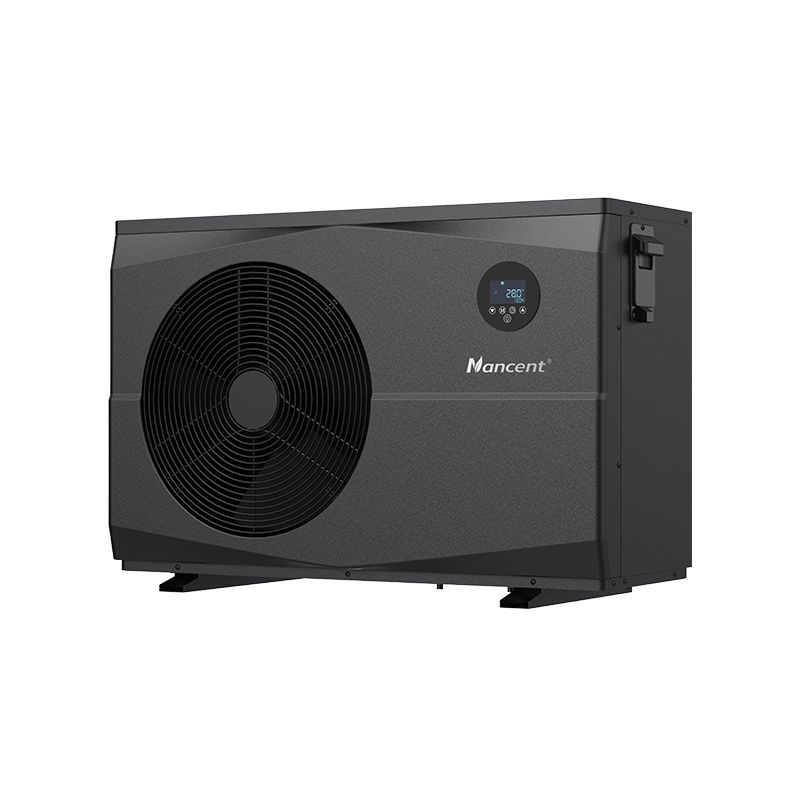

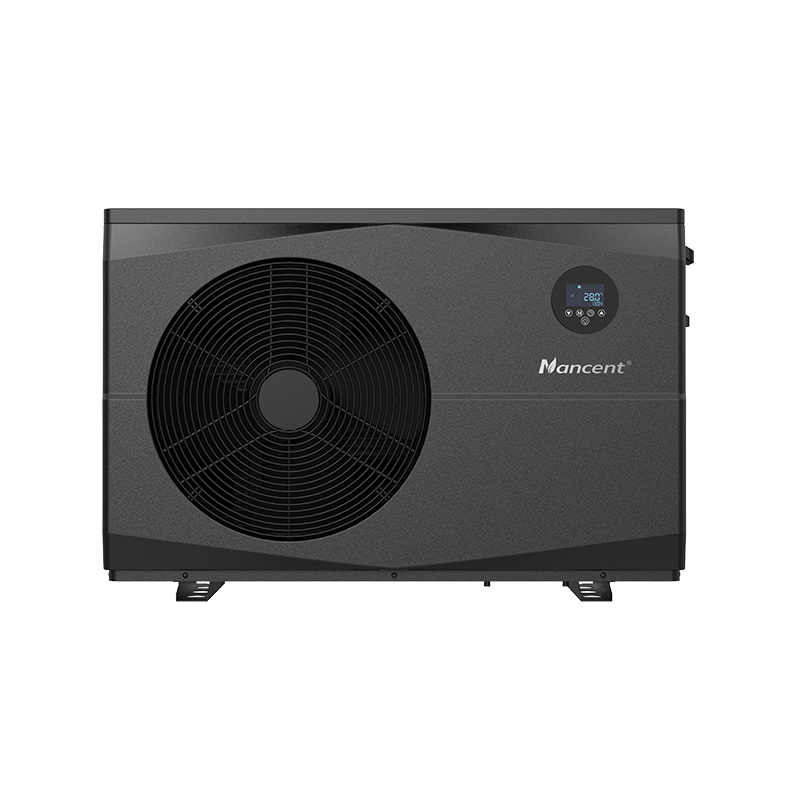

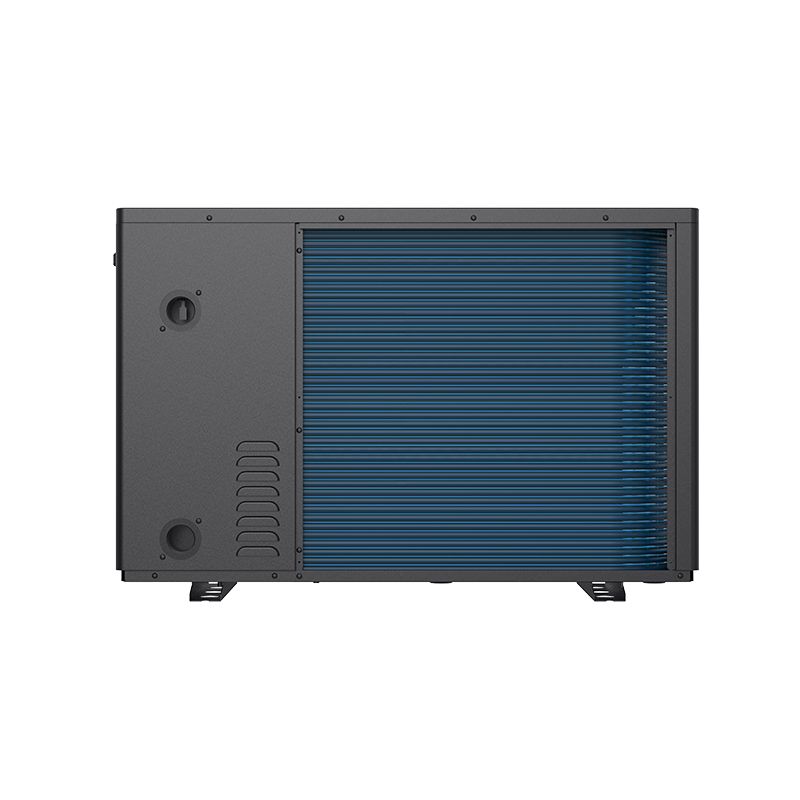

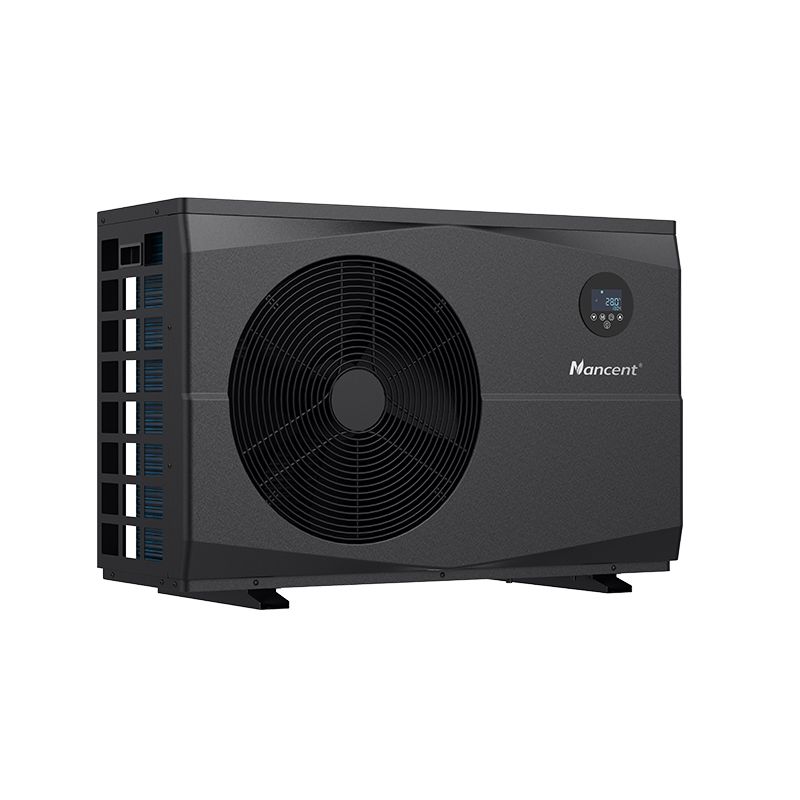

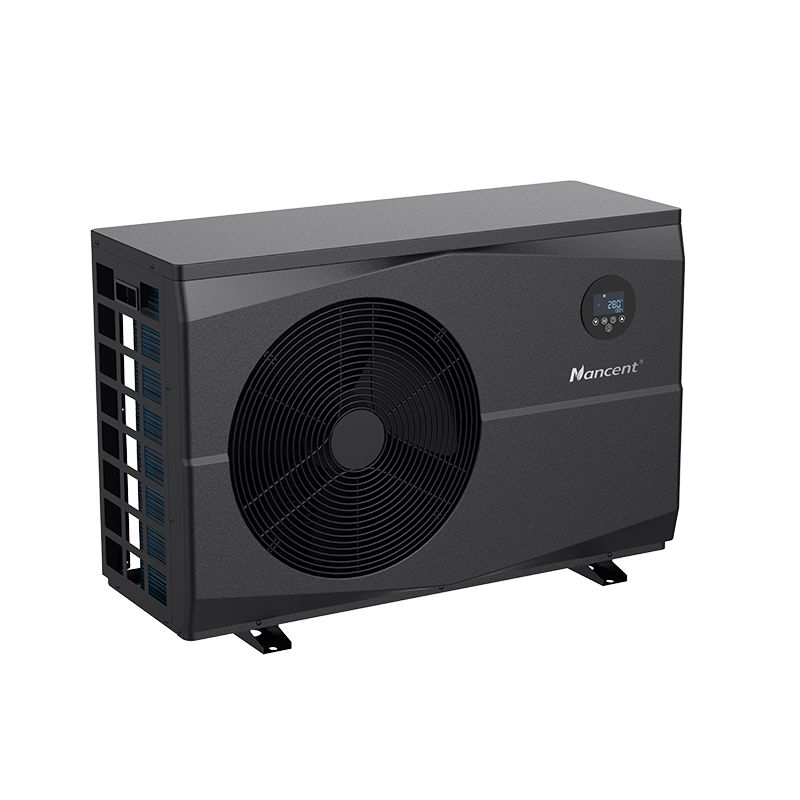

OCEAN CONCH SERIES Swimming Pool Heat Pump

Energy Efficiency A (SCOP)

Superior energy savings with A-rated performance. Optimizes heat output across seasons to lower electricity bills and reduce your carbon footprint.

R32 Refrigerant

Eco-friendly coolant with a lower Global Warming Potential. Delivers superior heat transfer for powerful performance while protecting the planet.

3D Inverter Technology

Ultimate comfort, zero fluctuations. Rapidly reaches desired temperatures with quiet, precise control for faster cooling, heating, and lasting durability.

Inquire Now

Next Product

Details Parameters

ULTRA ENERGY SAVING

Driven by Nancent's advanced 3D full inverter technology, the OCEAN CONCH SERIES optimists the operation of the compressor, fan, and EEV to achieve faster heating. Compressor insulation and corrosion-resistant titanium heat exchanger ensure long-lasting efficiency and steady water temperature.

OCEAN CONCH SERIES Swimming Pool Heat Pump

INTELLIGENT CONTROL

3 Temperature Control Modes

OCEAN CONCH SERIES Swimming Pool Heat Pump Heating Mode

When the inlet water temperature is lower than the heating target temperature, the unit will activate the heating mode.

OCEAN CONCH SERIES Swimming Pool Heat Pump Cooling Mode

When the inlet water temperature exceeds the cooling target temperature, the unit will activate the cooling mode.

OCEAN CONCH SERIES Swimming Pool Heat Pump Auto Mode

If the inlet water temperature is lower than the auto target temperature, the unit will operate in heating mode. If the inlet water temperature is higher than the auto target temperature, the unit will operate in cooling mode.

3 Running Modes

OCEAN CONCH SERIES Swimming Pool Heat Pump Smart Mode

Energy saving is achieved by operating at a comfortable frequency in Smart Mode.

OCEAN CONCH SERIES Swimming Pool Heat Pump Powerful Mode

Rapid heating is achieved by operating at a high frequency in Powerful Mode.

OCEAN CONCH SERIES Swimming Pool Heat Pump Silent Mode

A quiet environment is provided by operating at a low frequency in Silent Mode.

OCEAN CONCH SERIES Swimming Pool Heat Pump

ULTRA-SILENT EXPERIENCE

OCEAN CONCH SERIES Swimming Pool Heat Pump Single-Layer Compressor Insulation

A high-density acoustic foam layer envelops the compressor, efficiently absorbing operational vibrations and blocking mechanical noise transmission from the source.

OCEAN CONCH SERIES Swimming Pool Heat Pump Anti-Vibration System

The suspended mounting structure isolates mechanical vibrations from the chassis, ensuring exceptionally smooth, quiet, and stable performance.

OCEAN CONCH SERIES Swimming Pool Heat Pump Streamlined Fan Blade Design

Aerodynamically optimized serrated-edge blades improve airflow efficiency while minimizing turbulence and air movement noise.

OCEAN CONCH SERIES Swimming Pool Heat Pump Sturdy 1.2mm Frame

The reinforced 1.2mm-thick chassis and motor support bracket provide superior rigidity, minimizing resonance and vibration for long-term silent stability.

OCEAN CONCH SERIES Swimming Pool Heat Pump Silent Mode

The intelligent silent mode automatically adjusts fan speed and compressor frequency to maintain desired comfort levels while creating a calm and peaceful environment anytime.

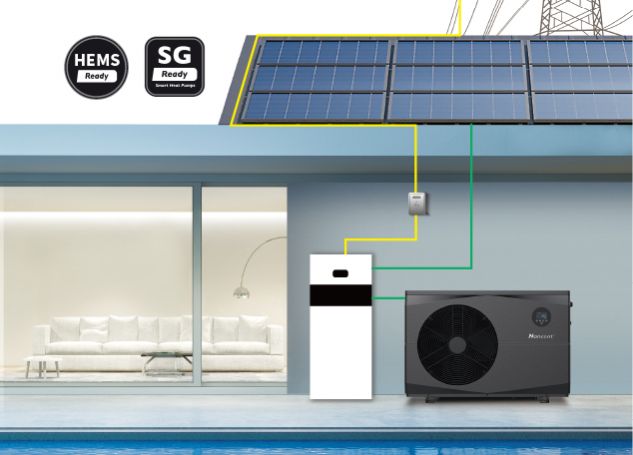

SG & HEMS CONNECTIVITY

SG Ready

The OCEAN CONCH SERIES provides a connection to the smart grid to enable automated operation based on dynamic electricity prices. This ensures the unit works most efficiently when power is cheapest, delivering optimal 24/7 cost savings.

HEMS Ready

Achieve full energy synergy by connecting the OCEAN CONCH SERIES heat pump to the PV and battery systems with a Home Energy Manager/Smart Meter.

Nancent's self-developed HEMS platform empowers you to maximize green energy usage, taking control of your home's energy efficiency and sustainability.

Parameters

Model：NF-	70PR3-ID	90PR3-ID	110PR3-ID	150PR3-ID	180PR3-ID
Advised Pool Size (m³)	15~30	20~40	25~50	30~60	35~70
Heating Water Temperature Range (℃)	9~40	9~40	9~40	9~40	9~40
Cooling Water Temperature Range (℃)	8~28	8~28	8~28	8~28	8~28
Heating Operating Ambient Temperature Range (℃)	-7~43	-7~43	-7~43	-7~43	-7~43
Cooling Operating Ambient Temperature Range (℃)	10~43	10~43	10~43	10~43	10~43
[Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet Temperature: 26°C
Heating Capacity（kW）	1.28~7.01	1.78~9.02	2.27~11.18	3.22~15.05	4.20~18.02
Power Input（kW）	0.08~1.20	0.11~1.55	0.14~1.92	0.20~2.58	0.26~3.09
COP	16.00~5.84	16.18~5.82	16.21~5.82	16.10~5.83	16.15~5.83
[Heating] Ambient Temperature (DB/WB): 15°C/12°C; Water Inlet Temperature: 26°C
Heating Capacity（kW）	1.02~4.78	1.12~6.25	1.55~7.77	2.04~10.47	2.81~12.61
Power Input（kW）	0.14~1.05	0.15~1.38	0.21~1.71	0.28~2.33	0.37~2.76
COP	7.28~4.55	7.47~4.53	7.38~4.54	7.29~4.49	7.59~4.57
[Cooling] Ambient Temperature (DB/WB): 35°C/- ; Water Inlet Temperature: 30°C
Cooling Capacity (kW)	1.25~3.91	1.59~5.01	2.24~6.24	2.83~8.54	3.67~9.87
Power Input (kW)	0.17~0.94	0.22~1.21	0.32~1.51	0.39~2.05	0.52~2.39
EER	7.35~4.16	7.23~4.14	7.00~4.13	7.26~4.17	7.06~4.13
General Information
Power Supply	220~240V~/50Hz
Rated Power Input (kW)	1.68	2.18	2.81	3.82	4.36
Rated Current (A)	7.30	9.49	12.23	16.60	18.95
Water Flow (m³/h)	3.1	4.0	4.9	6.6	7.8
Water Pressure Drop (kPa)	15	16	16	17	22
Refrigerant	R32
Compressor Brand	GMCC
Water Side Heat Exchanger	Titanium Heat Exchanger
Wi-Fi Function	Yes
Water Pipe Connection (mm)	50
Water Proof Level	IPX4
Electricity Shock Proof	Class Ⅰ
Sound Pressure Level at 1m [dB(A)]	40~52	42~53	43~53	44~55	45~55
Sound Pressure Level at 10m [dB(A)]	<30	<32	<32	<35	<36
Net Weight（kg）	38	40	43	52	56
Net Dimensions [L×W×H (mm)]	910×360×618			1002×391×654
Notice: More appearances are available. Specifications are for reference only and subject to the final product.
