Cold Plunge Tub With Chiller

Say goodbye to ice and hassle! The ultimate solution for your ice bath routine.

Highly Integrated & Space-Saving:

Suitable for various spaces, it simplifies installation and saves space.

Easy Installation & User-Friendly:

No additional installation steps required, ensuring hassle-free usage.

Whisper-Quiet Operation:

Built-in design ensures a peaceful experience with minimal noise.

Inquire Now

Details European Parameters North American Parameters

ICE BATH FOR HEALTHY LIFE

3 Major Effects of Ice Bath

Physical Training

Ice bath can help speed physical recovery and improve athletic performance for athletes and fitness enthusiasts.

Injury Treatment

Ice bath is well-known in rehabilitation to relieve muscle pain, reduce muscle inflammation and promote injury healing.

Health Management

More and more individual consumers are beginning to pay attention to health conditions, and ice bath has become one of the choices for improving physical sensation and immunity.

SAY GOODBYE TO ICE CUBES

Are you still adding ice cubes to the water by yourself?

Are you still worried that the water is not cold enough or too cold?

Do you want to enjoy the hot spa sometimes?

BLUECOLD Ice Bath Chiller has a built-in reverse valve for switching between heating mode for hot spa and cooling mode for ice bath, and it's also applicable for mini swimming pool (By split type). It has a wide operation range of ambient temperature from -5℃ to 43℃ and water temperature from 2℃ to 40℃.

With the advanced temperature control technology, users can set the target temperature precisely by 1℃.

Now all you need to do is to plug it in, then you can enjoy the cold or hot water as your wish.

Cold Plunge Tub With Chiller

ENJOY YOUR ECO-LIFE

Eco-Friendly Cold Plunge Tub Chiller: Sustainable Cooli

The BLUECOLD Cold Plunge Tub Chiller not only delivers exceptional performance but also sets a new standard for eco-conscious cooling solutions. Here's how it integrates cutting-edge low-carbon technology to enhance your experience while caring for the environment.

· Energy-Efficient Design

The Cold Plunge Tub Chiller uses minimal electricity by extracting heat from the bath water and releasing it into the environment. This energy-saving approach makes it significantly more efficient and convenient compared to traditional ice machines and refrigerators.

· Advanced R32 Refrigerant Technology

Unlike conventional R134a/R410A systems, the BLUECOLD Cold Plunge Tub Chiller uses R32 refrigerant, which offers:

· Lower Global Warming Potential (GWP): Reducing the environmental impact.

· Higher Energy Efficiency: Saving energy while maintaining optimal performance.

· Reduced Carbon Footprint

This renewable cooling solution contributes to lowering CO2 emissions, making your home greener and more sustainable. By choosing the Cold Plunge Tub Chiller, you can enjoy the benefits of cold and hot water therapy while reducing your carbon footprint and contributing to a healthier planet.

· The Perfect Choice for a Greener Future

With the Cold Plunge Tub Chiller, you don't need to compromise between comfort and sustainability. Save money on energy bills while doing your part to protect the environment. Upgrade your recovery and relaxation routine with a solution that's designed for both you and the planet.

Choose Cold Plunge Tub Chiller – where performance meets sustainability.

Cold Plunge Tub With Chiller

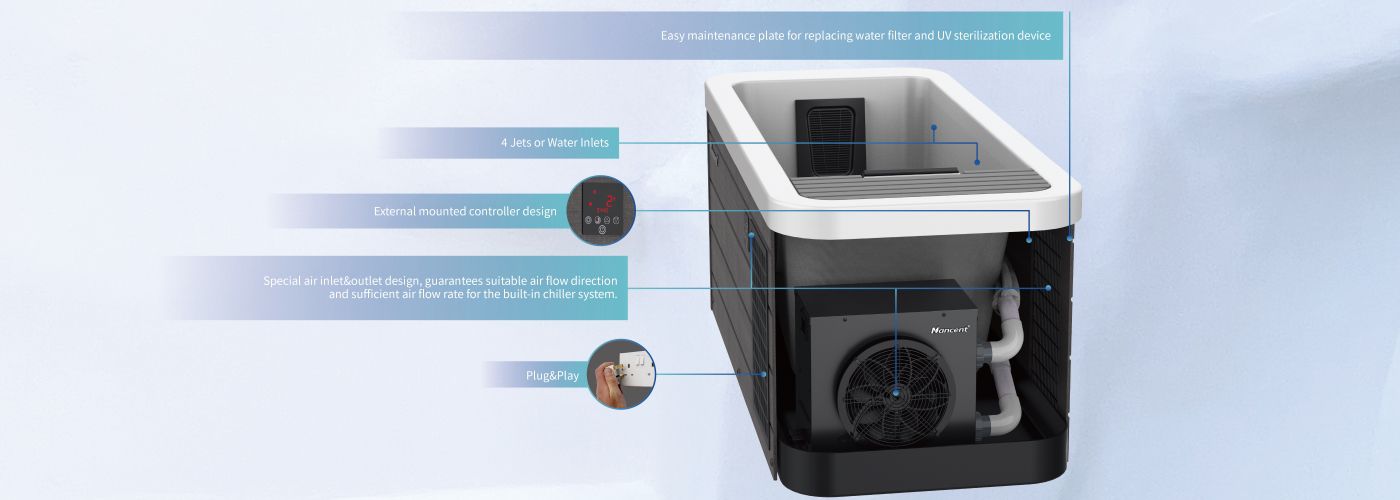

ALL-IN-ONE OR SPLIT

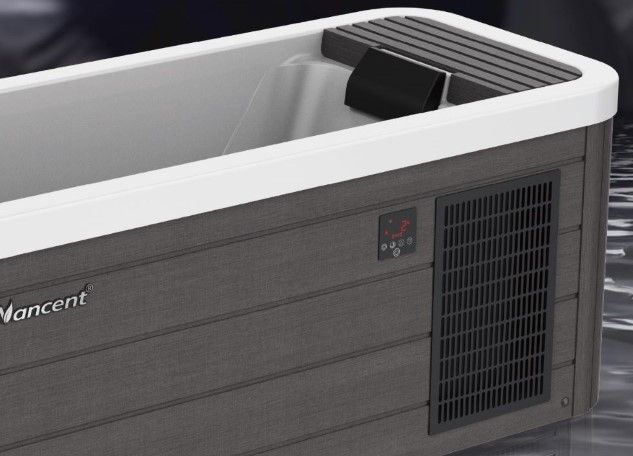

All-IN-ONE TYPE

The chiller system is installed inside the specialized acrylic bathtub, and the wire controller is mounted on the side panel of the bathtub.

ADVANTAGES

Highly integrated, saving installation space.

No extra installation work, super easy to use for end users.

Acrylic bathtub is durable with ultra-long service life.

The bathtub design is ergonomic, and the semi-lying style can make people more relaxed.

Unique fiberglass and foaming layer, guarantee the best heat insulation and help shorten the cooling time.

Equipped with bathtub cover as a standard, it further reduces the cooling loss.

Built-in design, for reducing the noise level.

DESIGN HIGHLIGHTS

ALL-IN-ONE TYPE

TRIPLE NOISE REDUCTION

The whole cabinet of BLUECOLD Ice Bath Chiller is covered with thick sound insulation layer, which can greatly help reduce the noise level.

Rubber feet as a standard, reduce the vibration and noise.

Strong base design, further reduces the compressor vibration and noise.

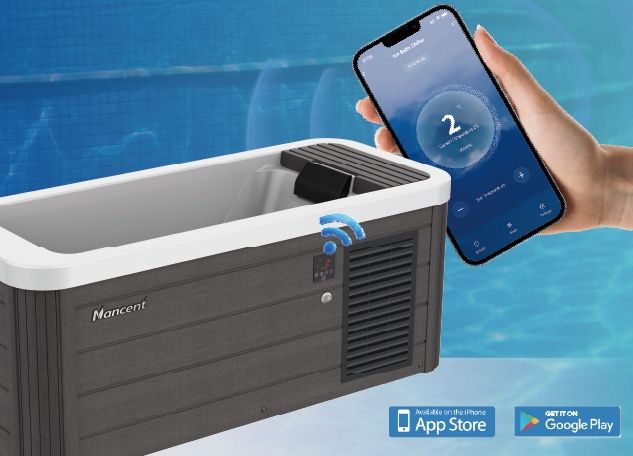

SMART APP REMOTE CONTROL

Connect your mobile phone with Tuya APP, start the BLUECOLD Cold Plunge Tub Chiller and set the target temperature in advance, then you can enjoy the ice bath directly after exercise. All information about the unit is just at your fingertips.

European Parameters

Model: NF-	20CR3-500L	25CR3-500L
Type	Heating/cooling	Heating/cooling
Approximate Chilling Time From 25°C to 5°C（h） Ambient Temp.: 30℃	8	6.5
Heating Water Temp. Range (℃)	15~40	15~40
Cooling Water Temp. Range (℃)	2~28	2~28
Heating Operating Ambient Temp. Range (℃)	-5~43	-5~43
Cooling Operating Ambient Temp. Range (℃)	10~43	10~43
[Cooling] Ambient: 35℃, Water Outlet: 27℃, Humidity: 40%
Cooling Capacity (kW)	1.90	2.35
Power Input (kW)	0.71	0.87
EER	2.68	2.70
[Cooling] Ambient: 27℃, Water Outlet: 5℃, Humidity: 80%
Cooling Capacity (kW)	1.30	1.56
Power Input (kW)	0.45	0.53
EER	2.89	2.94
[Cooling] Ambient 15℃, Water Outlet: 5℃, Humidity: 70%
Cooling Capacity (kW)	1.64	2.01
Power Input (kW)	0.49	0.60
EER	3.35	3.35
[Cooling] Ambient 15℃, Water Outlet: 2℃, Humidity: 70%
Cooling Capacity (kW)	1.51	1.60
Power Input (kW)	0.45	0.48
EER	3.36	3.33
[Heating] Ambient: 27℃, Water Inlet/Outle: 26/28℃, Humidity: 80%
Heating Capacity (kW)	3.18	4.20
Power Input (kW)	0.50	0.66
COP	6.36	6.36
[Heating] Ambient: 15℃,Water Inlet/Outle: 26/28℃, Humidity: 70%
Heating Capacity (kW)	2.15	2.53
Power Input (kW)	0.53	0.64
COP	4.06	3.95
[Heating] Ambient: 27℃, Water Inlet: 38℃, Humidity: 80%
Heating Capacity (kW)	2.85	3.38
Power Input (kW)	0.81	0.95
COP	3.52	3.56
General Information
Power Supply	220-240v~/50Hz	220-240v~/50Hz
Refrigerant	R32	R32
Max. Refrigerant Pressure(Mpa）	4.4	4.4
Water Flow Volume (m³/h)	2.40	2.40
Circulation Pump Brand	Lingxiao	Lingxiao
Circulation Pump Power Input (W)	250	250
Water Filter	Built-in Paper Fitter	Built-in Paper Fitter
Filtration System	20 Micron Filter	20 Micron Filter
Sterilization	Built-in Ozone	Built-in Ozone
Isolation	Polyurethane Foam	Polyurethane Foam
Water heat Exchanger	Titanium	Titanium
Comppressor Brand	GMCC	GMCC
Compressor Type	Rotary	Rotary
Air Flow Direction	Horizotal	Horizotal
Display	LED screen	LED screen
Wi-Fi Function	Yes	Yes
Max. Power Input (kW)	1.12	1.41
Max. Running Current (A)	5.1	6.4
Bathtub Material	Acrylic	Acrylic
Pillow	Yes	Yes
Cover	Optional	Optional
Cover	1880x790x90mm（EPS)	1880x790x90mm（EPS)
Sound Pressure Level at 1m [dB(A)]	53	54
Sound Pressure Level at 10m [dB(A)]	36	37
Water Proof Level	IPX4	IPX4
Net Weight (kg)	235	240
Net Dimensions [(L×W×H) mm]	1880x790x750	1880x790x750
The above data are for reference only, the specific data are subject to actual product.

North American Parameters

Model: NF-	20CR3-116-450L	25CR3-116-450L
Type	Heating/cooling	Heating/cooling
Approximate Chilling Time From 77℉ to 41℉（h） Ambient Temp.: 86℉	5	5
Heating Water Temp. Range (℉)	59~104	59~104
Cooling Water Temp. Range (℉)	36~83	36~83
Heating Operating Ambient Temp. Range (℉)	23~109	23~109
Cooling Operating Ambient Temp. Range (℉)	50~109	50~109
[Cooling] Ambient: 95℉, Water Outlet: 80.6℉, Humidity: 40%
Cooling Capacity (kBTU/h)	6.48	8.02
Power Input (kBTU/h)	2.42	2.96
EER	2.68	2.71
[Cooling] Ambient: 80.6℉, Water Outlet: 41℉, Humidity: 80%
Cooling Capacity (kBTU/h)	4.44	5.32
Power Input (kBTU/h)	1.92	2.28
EER	2.31	2.33
[Cooling] Ambient 59℉, Water Outlet: 41℉, Humidity: 70%
Cooling Capacity (kBTU/h)	5.60	6.86
Power Input (kBTU/h)	1.68	2.05
EER	3.33	3.35
[Cooling] Ambient 59℉, Water Outlet: 35.6℉, Humidity: 70%
Cooling Capacity (kBTU/h)	5.15	5.46
Power Input (kBTU/h)	1.54	1.63
EER	3.34	3.36
[Heating] Ambient: 80.6℉, Water Inlet: 78.8℉, Humidity: 80%
Heating Capacity (kBTU/h)	10.85	14.33
Power Input (kBTU/h)	1.70	2.26
COP	6.37	6.33
[Heating] Ambient: 59℉, Water Inlet: 78.8℉, Humidity: 70%
Heating Capacity(kBTU/h)	7.34	8.63
Power Input (kBTU/h)	1.81	2.18
COP	4.05	3.95
[Heating] Ambient: 80.6℉, Water Inlet: 100℉, Humidity: 80%
Heating Capacity(kBTU/h)	9.73	11.53
Power Input (kBTU/h)	2.76	3.25
COP	3.53	3.55
General Information
Power Supply	110-120v~/60Hz	110-120v~/60Hz
Refrigerant	R32	R32
Max. Refrigerant Pressure(psi）	638	638
Water Flow Volume (gal/m)	10.56	10.56
Circulation Pump Brand	Lingxiao	Lingxiao
Circulation Pump Power Input (BTU/h)	853	853
Water Filter	Built-in Paper Fitter	Built-in Paper Fitter
Filtration System	20 Micron Filter	20 Micron Filter
Sterilization	Built-in Ozone	Built-in Ozone
Isolation	Polyurethane Foam	Polyurethane Foam
Water heat Exchanger	Titanium	Titanium
Comppressor Brand	GMCC	GMCC
Compressor Type	Rotary	Rotary
Air Flow Direction	Horizotal	Horizotal
Display	LED screen	LED screen
Wi-Fi Function	Yes	Yes
Max. Power Input (kBTU/h)	3.82	4.81
Max. Running Current (A)	10	15
Bathtub Material	Acrylic	Acrylic
Pillow	Optional	Optional
Cover	Optional	Optional
Cover	74x21×3.5 inch（EPS)	74x21×3.5 inch（EPS)
Sound Pressure Level at 1m [dB(A)]	53	54
Sound Pressure Level at 10m [dB(A)]	36	37
Water Proof Level	IPX4	IPX4
Net Weight (lb)	518	529
Net Dimensions [(L×W×H) inch]	74x21x29.5	74x21x29.5
The above data are for reference only, the specific data are subject to actual product.
