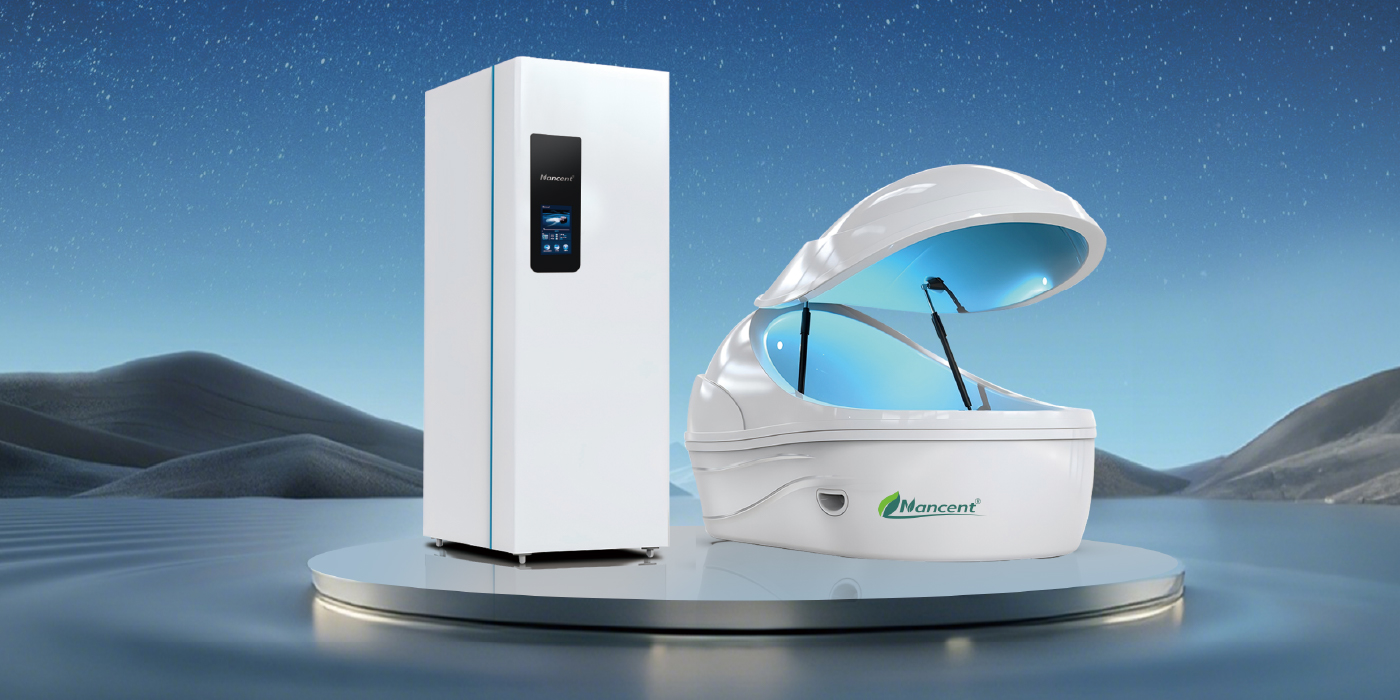

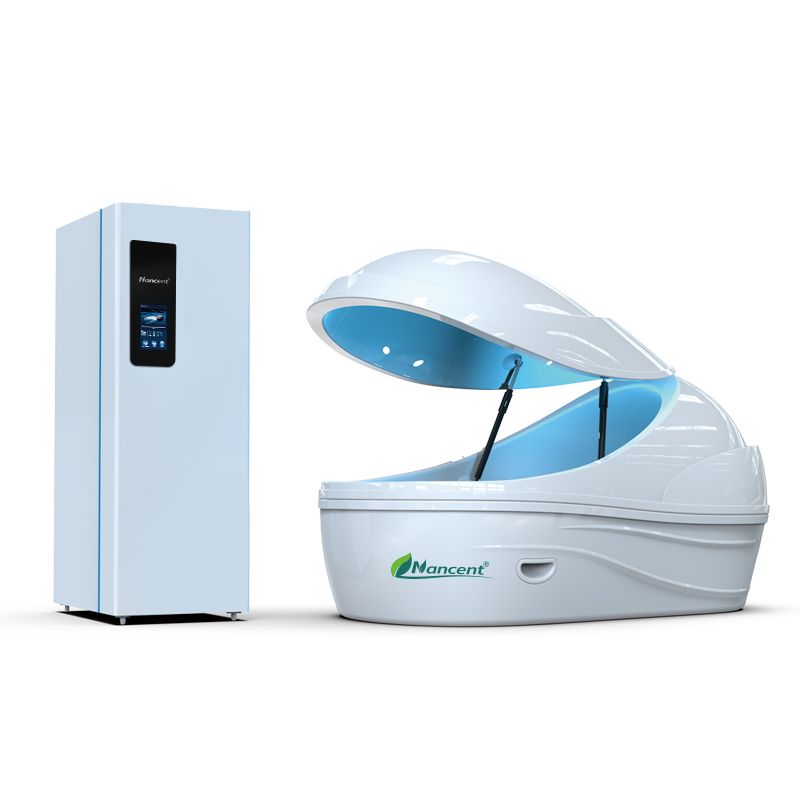

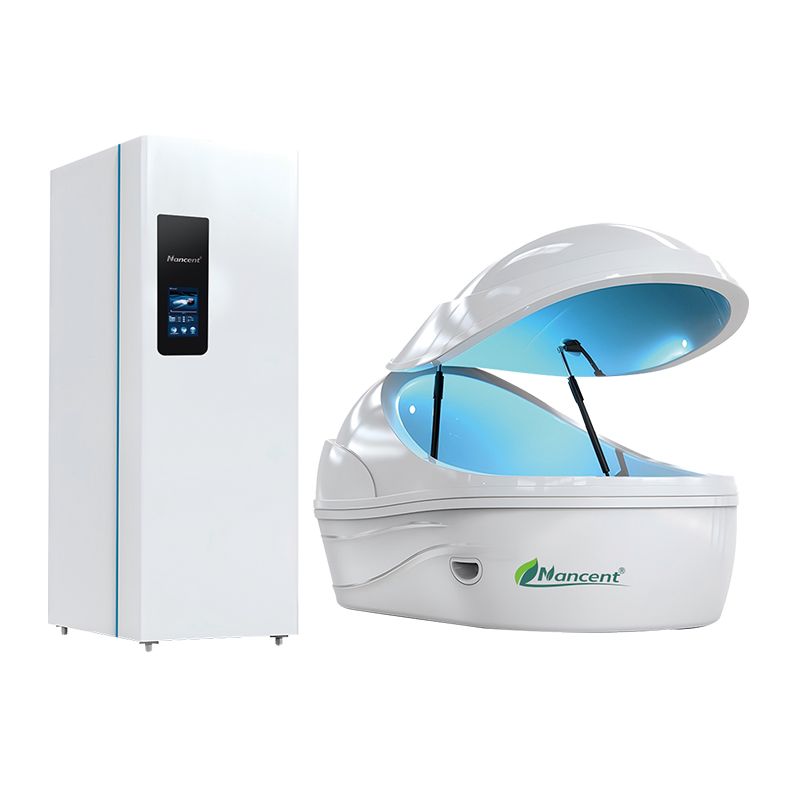

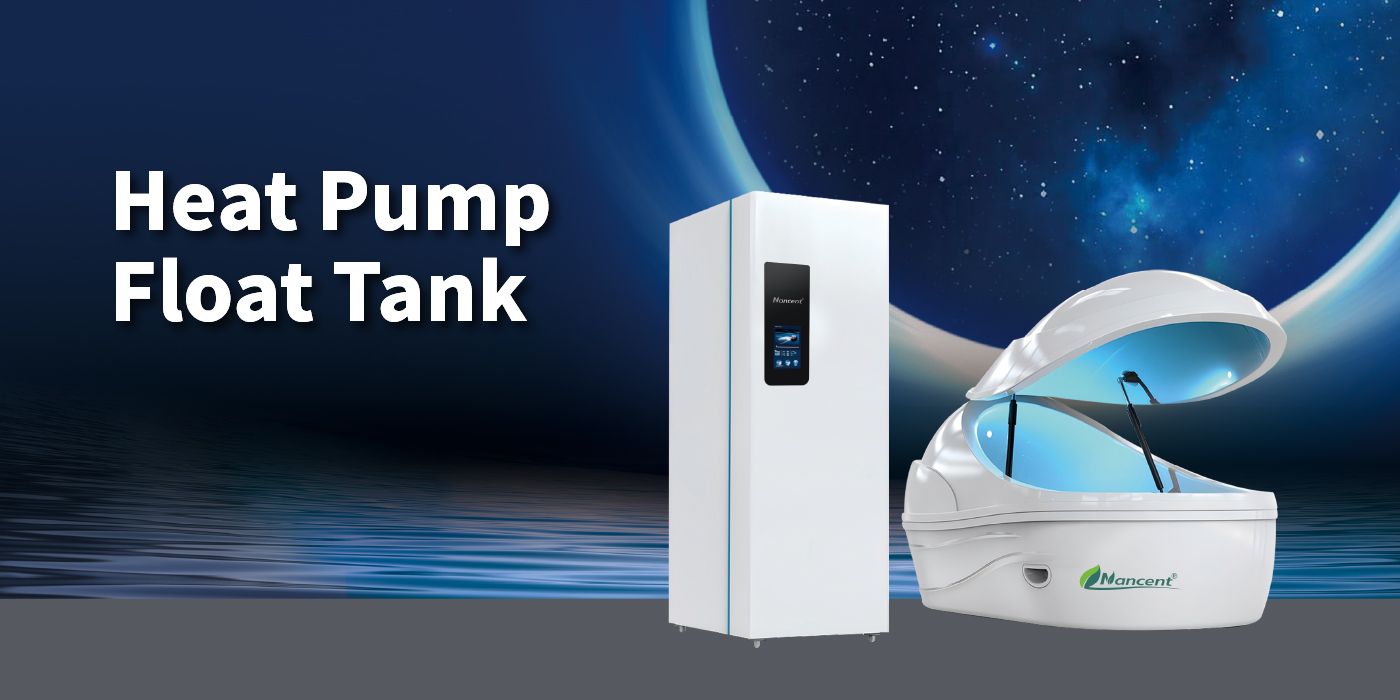

Heat Pump Float Tank

500L Integrated Thermal Tank

Large-capacity water tank with efficient heat pump system ensures fast heating/cooling and stable performance.

Reliable Dual Water Pump System

Euipped with two separate water pumps : One pump delivers water from the main unit into the float tank and circulates water through the tank, filter, heater, chiller, and UV for efficient heating/cooling. The other returns water from the float tank back to the main unit. Independent systems ensure stable performance and efficient operation.

Dual-Mode Energy Efficiency

Pure heat pump mode cuts energy use by around 80%, while hybrid mode maintains around 35% savings with instant heating.

Inquire Now

Next Product

Detailsheat-pump-float-tank Parameters

HEALTH BENEFITS OF FLOAT SPA

● Zero-Gravity Floating

*The floating experience removes pressure from the body, offering relief for the back, neck, and joints.

*Ideal for people with desk fatigue, poor posture, or physical stress.

● Accelerated Muscle Recovery

Cold therapy (down to 0°C) reduces muscle soreness, inflammation, and swelling after intense workouts or physical strain.

● Deep Mental Relaxation

The quiet, enclosed float environment mimics sensory deprivation, helping to reduce anxiety, lower cortisol levels, and improve emotional balance.

● Better Sleep Quality

Floating sessions calm the nervous system and promote melatonin production, leading to deeper, more restorative sleep.

● Improved Blood Circulation

Alternating cold and warm water therapy stimulates vascular function, enhances blood flow, and supports cardiovascular health.

● Enhanced Detoxification

Warm floating at 38–40°C opens pores, promotes sweating, and supports the body's natural detox process.

● Increased Focus & Clarity

Post-float mental clarity and focus are commonly reported — great for stress relief, creativity, and cognitive reset.

● Balancing Body & Mind

Regular float sessions support holistic wellness, aligning the physical body with emotional and mental well-being.

Heat Pump Float Tank

ADVANCED TECHNOLOGY FOR THE FUTURE OF WELLNESS

Sensory Isolation for Mental Wellness

The enclosed, quiet environment removes external distractions, helping users enter a meditative state, reduce anxiety, and improve sleep quality.

Sensory Isolation for Mental Wellness

The enclosed, quiet environment removes external distractions, helping users enter a meditative state, reduce anxiety, and improve sleep quality.

Safe & Hygienic Design

Automatic UV sterilization, ozone sterilization and filtration ensure each session is clean, safe, and low-maintenance.

Dual-Mode Thermal Control

Heat pump enables both deep chilling and efficient heating, combining cold therapy, hot therapy and float therapy in one capsule.

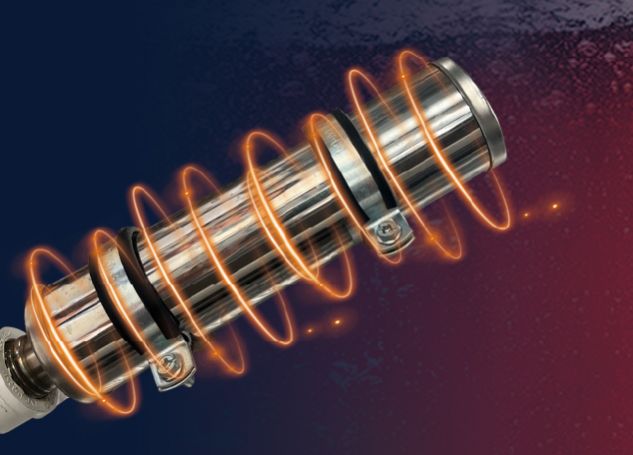

Hybrid Heating System for Rapid Performance

Combining high energy-efficiency heat pump with auxiliary electric heater, the float system can rapidly reach target temperatures, with lower energy cost and precise thermal control.

Cold Floatation at 0°C

Experience the ultimate relaxation and recovery through the integration of cold therapy and floatation, enabled by advanced heat pump technology.

Our specially formulated magnesium salt solution has a freezing point below 0°C, allowing the heat pump to safely and reliably deliver water at 0°C or even below 0°C without the risk of freezing or damaging the heat exchanger.

The directional back-focused cold immersion design aligns with traditional Chinese medicine principles, effectively avoiding direct abdominal exposure to cold water — a key consideration for users with digestive sensitivities.

Model: NF-		20FR3-500L
Heating Time From 15℃ to 35℃ Without Electric Heater (Ambient Temp.: 27℃)		≤4.5h
Coolling Time From 25℃ to 5℃ (Ambient Temp.: 30℃)		≤8.5h
Recommended Floating Water Temperature (℃)		35~38
Recommended Floating Time (min)		30~45
Recommended Ice Bath Water Temperature (℃)		2~10
Recommended Ice Bath Time (min)		1~5
Heating Water Temperature Range (℃)		0~40
Cooling Water Temperature Range (℃)		0~30
Heating Operating Ambient Temperature Range (℃)		-5~43
Cooling Operating Ambient Temperature Range (℃)		10~43
[Heating] Ambient Temperature (DB/WB): 27°C/24.3°C; Water Inlet: 26℃
Heating Capacity (kW)		3.18
Power Input (kW)		0.50
COP		6.36
[Heating] Ambient Temperature (DB/WB): 15°C/12°C; Water Inlet: 26℃
Heating Capacity (kW)		2.15
Power Input (kW)		0.53
COP		4.06
[Heating] Ambient Temperature (DB/WB): 27°C/24.3°C, Water Inlet: 38℃
Heating Capacity (kW)		2.85
Power Input (kW)		0.81
COP		3.52
[Cooling] Ambient Temperature (DB/WB): 35℃/-; Water Outlet: 27℃
Cooling Capacity (kW)		1.90
Power Input (kW)		0.71
EER		2.68
[Cooling] Ambient Temperature (DB/WB): 27℃/-; Water Outlet: 5℃
Cooling Capacity (kW)		1.30
Power Input (kW)		0.45
EER		2.89
[Cooling] Ambient Temperature (DB/WB): 15℃/-, Water Outlet: 2℃
Cooling Capacity (kW)		1.51
Power Input (kW)		0.45
EER		3.36
General Information
Power Supply		220-240V~/50Hz
Main Unit Electric Heater Power (kW)		4
Float Tank Electric Heater Power (kW)		0.2
Current Leakage Protection Switch (A)		65A
Power Cable (mm²)		3 x 6
Refrigerant		R32
Compressor Brand		HIGHLY
Throttling Device		EEV
Water Side Heat Exchanger		Titanium Heat Exchanger
Float Tank Water Capacity (L)		420
Main Unit Water Tank Capacity (L)		500
Magnesium Salt Concentration (g/cm³)		1.25~1.4
Primary Pump		Magnetic Drive Circulation Pump
Secondary Pump		Magnetic Drive Circulation Pump
Sterilization Device		UV Sterilizer & Ozone Sterilizer
Water Filter		Cartridge Filter
Underwater Light		Built-in
Starlight		Built-in
Audio Player		Built-in
Ventilation Fan		Built-in
Display		10-inch Touch Screen
Wi-Fi Function		Yes
Filter Replacement Frequency		Every 120 Sessions
Floating Liquid Replacement Frequency		Every 300 Sessions
Electricity Shock Proof		Class Ⅰ
Internal Noise Level of Float Tank [dB(A)]		≤20
Main Unit Noise Level at 1m Distance [dB(A)]		≤30
Net Weight of Main Unit (kg)		160
Net Weight of Float Tank (kg)		225
Net Dimensions of Main Unit [LxWxH (mm)]		720x1160x2300
Net Dimensions of Float Tank [LxWxH (mm)]		2420x1370x1200
Notice: More appearances are available. Specifications are for reference only and subject to the final product.
